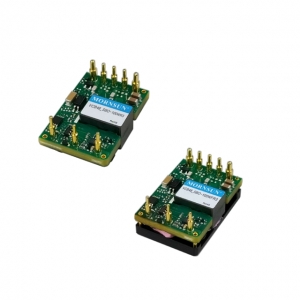

VCB48_SBO-100W(F)R3(-N)

Features

VCB48_SBO-100W(F)R3seriesofisolated100WDC-DCconverterproductswithanwide2:1inputvoltagerange.Theyfeatureefficienciesup to92%,inputtooutputisolationistestedwith1500VDCandtheconvertersafetyoperateambienttemperatureof-40℃to+85℃,input under-voltageprotection,outputover-voltage,over-current,short-circuitprotection.whichiswidelyusedincommunicationfield,suchas switches,repeaters,intelligentcommunicationgateways,GPSsynchronousclockand4G/5Gbasestationetc.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
VCB4805SBO-100WR3-N 100 48(36-75) 5 1 1500VDC DIP 33.02*22.86*9.75
-
VCB4812SBO-100WR3-N 100 48(36-75) 12 1 1500VDC DIP 33.02*22.86*9.75
-
VCB4828SBO-100WR3-N 100 48(36-75) 28 1 1500VDC DIP 33.02*22.86*10.05
-
VCB4805SBO-100WFR3-N 100 48(36-75) 5 1 1500VDC DIP 33.02*22.86*12.70
-
VCB4812SBO-100WFR3-N 100 48(36-75) 12 1 1500VDC DIP 33.02*22.86*12.70
-
VCB4828SBO-100WFR3-N 100 48(36-75) 28 1 1500VDC DIP 33.02*22.86*13.00
-
VCB4805SBO-100WR3 100 48(36-75) 5 1 1500VDC DIP 33.02*22.86*9.75
-
VCB4812SBO-100WR3 100 48(36-75) 12 1 1500VDC DIP 33.02*22.86*9.75
-
VCB4828SBO-100WR3 100 48(36-75) 28 1 1500VDC DIP 33.02*22.86*10.05
-
VCB4805SBO-100WFR3 100 48(36-75) 5 1 1500VDC DIP 33.02*22.86*12.70
-
VCB4812SBO-100WFR3 100 48(36-75) 12 1 1500VDC DIP 33.02*22.86*12.70
-
VCB4828SBO-100WFR3 100 48(36-75) 28 1 1500VDC DIP 33.02*22.86*13.00
-

* For reference only. The detailed info please refer to the datasheet.
