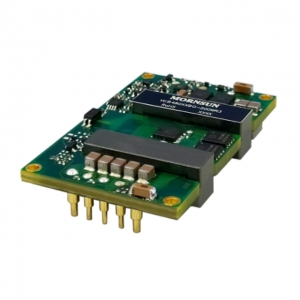

VCB48_QBO-200WR3(-N)

Features

VCB48_QBO-200WR3 series of isolated 200W DC-DC converter products with an wide 2:1 input voltage range. They feature efficiencies of up to 93%, input to output isolation is tested with 1500VDC and the converters safely operate ambient temperature of -40℃ to +100℃, input under-voltage protection, output short circuit, over-current, over-voltage, over-temperature protection. They are ideally and widely used in applications such as industrial control, electric power, instruments and communication fields.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
VCB4805QBO-200WR3 200 48(36-75) 5 1 1500VDC DIP 57.9*36.80*10.05
VCB4812QBO-200WR3 200 48(36-75) 12 1 1500VDC DIP 57.9*36.80*10.05
VCB4815QBO-200WR3 200 48(36-75) 15 1 1500VDC DIP 57.9*36.80*10.05
VCB4824QBO-200WR3 200 48(36-75) 24 1 1500VDC DIP 57.9*36.80*10.05
VCB4805QBO-200WR3-N 200 48(36-75) 5 1 1500VDC DIP 57.9*36.80*10.05
VCB4812QBO-200WR3-N 200 48(36-75) 12 1 1500VDC DIP 57.9*36.80*10.05
VCB4815QBO-200WR3-N 200 48(36-75) 15 1 1500VDC DIP 57.9*36.80*10.05
VCB4824QBO-200WR3-N 200 48(36-75) 24 1 1500VDC DIP 57.9*36.80*10.05

* For reference only. The detailed info please refer to the datasheet.
