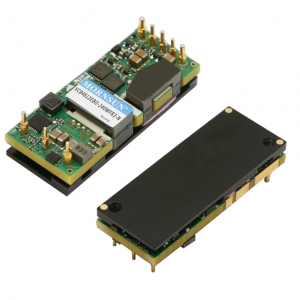

VCB48_EBO-240W(F/H)R3-N
Features
VCB48_EBO-240W(F/H)R3-N series is a high performance product designed for the field of communication power supply,the
output power can reach 240W,no minimum load requirements,with a wide voltage input of 36-75VDC,allowing the perating
temperature up to 85℃.It features input under-voltage,output over-voltage,output over-current,output short-circuit,
over-temperature protection,remote control and compensation,output-voltage regulation and other functions,by adding
additional circuits to meet CISPR32/EN55032CLASSB.It is widely used in battery powered equipment,industrial control,
electric power,instrumentation,communication,intelligent robots and other fields.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| VCB4810EBO-240WR3-N | 240 | 48(36-75) | 10.8 | 1 | 1500VDC | DIP | 58.42*22.86*10.70 | |||||
| VCB4812EBO-240WR3-N | 240 | 48(36-75) | 12 | 1 | 1500VDC | DIP | 58.42*22.86*10.70 | |||||
| VCB4810EBO-240WFR3-N | 240 | 48(36-75) | 10.8 | 1 | 1500VDC | DIP | 58.42*22.86*13.20 | |||||
| VCB4812EBO-240WFR3-N | 240 | 48(36-75) | 12 | 1 | 1500VDC | DIP | 58.42*22.86*13.20 | |||||
| VCB4810EBO-240WHR3-N | 240 | 48(36-75) | 10.8 | 1 | 1500VDC | DIP | 58.42*22.86*25.90 | |||||
| VCB4812EBO-240WHR3-N | 240 | 48(36-75) | 12 | 1 | 1500VDC | DIP | 58.42*22.86*25.90 | |||||
| VCB4824EBO-240WR3-N | 240 | 48(36-75) | 24 | 1 | 1500VDC | DIP | 58.42*22.86*10.70 | - | ||||
| VCB4824EBO-240WFR3-N | 240 | 48(36-75) | 24 | 1 | 1500VDC | DIP | 58.42*22.86*13.20 | - | ||||
| VCB4824EBO-240WHR3-N | 240 | 48(36-75) | 24 | 1 | 1500VDC | DIP | 58.42*22.86*25.90 | - | ||||
| VCB4828EBO-240WR3-N | 240 | 48(36-75) | 28 | 1 | 1500VDC | DIP | 58.42*22.86*10.70 | - | ||||
| VCB4828EBO-240WFR3-N | 240 | 48(36-75) | 28 | 1 | 1500VDC | DIP | 58.42*22.86*13.20 | - | ||||
| VCB4828EBO-240WHR3-N | 240 | 48(36-75) | 28 | 1 | 1500VDC | DIP | 58.42*22.86*25.90 | - |
* For reference only. The detailed info please refer to the datasheet.
