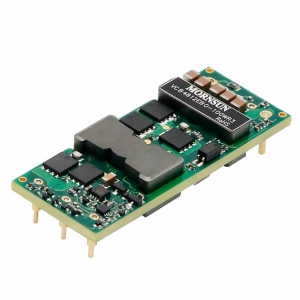

VCB48_EBO-100W(F)R3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
VCB48_EBO-100WR3 series of isolated 100W DC-DC converter products with an wide 2:1 input voltage range. They feature efficiencies up to 93%, input to output isolation is tested with 1500VDC and the converter safety operate ambient temperature of -40℃ to +100℃ , input under-voltage protection, output over-voltage, over-current, short-circuit protection, over-temperature protection. They are ideally and widely used in applications such as industrial control, electric power, instruments and communications
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| VCB4805EBO-100WR3 | 100 | 48(36-75) | 5 | 1 | 1500VDC | DIP | 58.42*22.86*9.69 | ||||
| VCB4812EBO-100WR3 | 100 | 48(36-75) | 12 | 1 | 1500VDC | DIP | 58.42*22.86*9.69 | ||||
| VCB4815EBO-100WR3 | 100 | 48(36-75) | 15 | 1 | 1500VDC | DIP | 58.42*22.86*9.69 | ||||
| VCB4824EBO-100WR3 | 100 | 48(36-75) | 24 | 1 | 1500VDC | DIP | 58.42*22.86*9.69 | ||||
| VCB4828EBO-100WR3 | 100 | 48(36-75) | 28 | 1 | 1500VDC | DIP | 58.42*22.86*9.69 |
* For reference only. The detailed info please refer to the datasheet.
