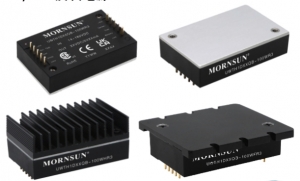

UWTH1D_QB-100W(H/F)R3
Features
TheUWTH1D_QB-100W(H/F)R3seriesisahigh-performanceproductspecificallydesignedforavarietyofrailwayapplications.Theoutput powercanreachat100W.Itfeatureswideinputvoltageof14-160VDC,whichiscompatiblewithnominalinputtypeof24V,48V,72V,96V and110V.MeetsEN50155standardforvoltagefluctuations.Thereinforcedhighinsulation3000VACensuresthatthesystemcanstillbeused safelyin5000mhighaltitudeapplications.Theallowableoperatingtemperatureisupto105°C.Itintegratesmultipleprotectionfunctions toensurethesafetyandhighreliabilityofthesystem,withfunctionsofremotecontrolandcompensation,outputvoltageadjustment,etc., whichperfectlymatchestherequirementsoflinelossandspecialvoltageintheapplication.Itiswidelyusedinvehicle-mountedswitches, traincontrolsystemsandassociatedequipment.
R3.jpg)
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| UWTH1D12QB-100WR3 | 100 | 110(14-160) | 12 | 1 | 3000VAC | DIP | 57.90*36.80*12.70 | |||||
| UWTH1D15QB-100WR3 | 100 | 110(14-160) | 15 | 1 | 3000VAC | DIP | 57.90*36.80*12.70 | |||||
| UWTH1D24QB-100WR3 | 100 | 110(14-160) | 24 | 1 | 3000VAC | DIP | 57.90*36.80*12.70 | |||||
| UWTH1D28QB-100WR3 | 100 | 110(14-160) | 28 | 1 | 3000VAC | DIP | 57.90*36.80*12.70 | |||||
| UWTH1D48QB-100WR3 | 100 | 110(14-160) | 48 | 1 | 3000VAC | DIP | 57.90*36.80*12.70 | |||||
| UWTH1D54QB-100WR3 | 100 | 110(14-160) | 54 | 1 | 3000VAC | DIP | 57.90*36.80*12.70 | |||||
| UWTH1D12QB-100WR3 | 100 | 110(14-160) | 12 | 1 | 3000VAC | DIP | 57.90*36.80*25.40 | |||||
| UWTH1D15QB-100WHR3 | 100 | 110(14-160) | 15 | 1 | 3000VAC | DIP | 57.90*36.80*25.40 | |||||
| UWTH1D24QB-100WHR3 | 100 | 110(14-160) | 24 | 1 | 3000VAC | DIP | 57.90*36.80*25.40 | |||||
| UWTH1D28QB-100WHR3 | 100 | 110(14-160) | 28 | 1 | 3000VAC | DIP | 57.90*36.80*25.40 | |||||
| UWTH1D48QB-100WHR3 | 100 | 110(14-160) | 48 | 1 | 3000VAC | DIP | 57.90*36.80*25.40 | |||||
| UWTH1D54QB-100WHR3 | 100 | 110(14-160) | 54 | 1 | 3000VAC | DIP | 57.90*36.80*25.40 | |||||
| UWTH1D12QB-100WFR3 | 100 | 110(14-160) | 12 | 1 | 3000VAC | DIP | 57.90*36.80*25.40 | |||||
| UWTH1D15QB-100WFR3 | 100 | 110(14-160) | 15 | 1 | 3000VAC | DIP | 62.00*56.00*14.50 | |||||
| UWTH1D24QB-100WFR3 | 100 | 110(14-160) | 24 | 1 | 3000VAC | DIP | 62.00*56.00*14.50 | |||||
| UWTH1D28QB-100WFR3 | 100 | 110(14-160) | 28 | 1 | 3000VAC | DIP | 62.00*56.00*14.50 | |||||
| UWTH1D48QB-100WFR3 | 100 | 110(14-160) | 48 | 1 | 3000VAC | DIP | 62.00*56.00*14.50 | |||||
| UWTH1D54QB-100WFR3 | 100 | 110(14-160) | 54 | 1 | 3000VAC | DIP | 62.00*56.00*14.50 |
* For reference only. The detailed info please refer to the datasheet.
