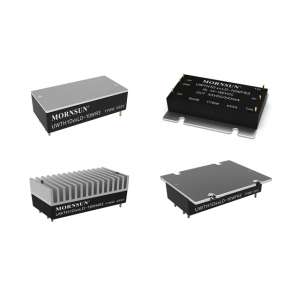

UWTH1D_LD-10W(F/H)R3
Features
(H)R3.jpg)
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| UWTH1D03LD-10WR3 | 10 | 110(14-160) | 3.3 | 1 | 3000VAC | DIP | 50.80*25.40*11.80 | |||||
| UWTH1D05LD-10WR3 | 10 | 110(14-160) | 5 | 1 | 3000VAC | DIP | 50.80*25.40*11.80 | |||||
| UWTH1D12LD-10WR3 | 10 | 110(14-160) | 12 | 1 | 3000VAC | DIP | 50.80*25.40*11.80 | |||||
| UWTH1D15LD-10WR3 | 10 | 110(14-160) | 15 | 1 | 3000VAC | DIP | 50.80*25.40*11.80 | |||||
| UWTH1D24LD-10WR3 | 10 | 110(14-160) | 24 | 1 | 3000VAC | DIP | 50.80*25.40*11.80 | |||||
| UWTH1D28LD-10WR3 | 10 | 110(14-160) | 28 | 1 | 3000VAC | DIP | 50.80*25.40*11.80 | |||||
| UWTH1D48LD-10WR3 | 10 | 110(14-160) | 48 | 1 | 3000VAC | DIP | 50.80*25.40*11.80 | |||||
| UWTH1D54LD-10WR3 | 10 | 110(14-160) | 54 | 1 | 3000VAC | DIP | 50.80*25.40*11.80 | |||||
| UWTH1D03LD-10WFR3 | 10 | 110(14-160) | 3.3 | 1 | 3000VAC | DIP | 50.80*25.40*22.80 | |||||
| UWTH1D05LD-10WFR3 | 10 | 110(14-160) | 5 | 1 | 3000VAC | DIP | 50.80*25.40*22.80 | |||||
| UWTH1D12LD-10WFR3 | 10 | 110(14-160) | 12 | 1 | 3000VAC | DIP | 50.80*25.40*22.80 | |||||
| UWTH1D15LD-10WFR3 | 10 | 110(14-160) | 15 | 1 | 3000VAC | DIP | 50.80*25.40*22.80 | |||||
| UWTH1D24LD-10WFR3 | 10 | 110(14-160) | 24 | 1 | 3000VAC | DIP | 50.80*25.40*22.80 | |||||
| UWTH1D28LD-10WFR3 | 10 | 110(14-160) | 28 | 1 | 3000VAC | DIP | 50.80*25.40*22.80 | |||||
| UWTH1D48LD-10WFR3 | 10 | 110(14-160) | 48 | 1 | 3000VAC | DIP | 50.80*25.40*22.80 | |||||
| UWTH1D54LD-10WFR3 | 10 | 110(14-160) | 54 | 1 | 3000VAC | DIP | 50.80*25.40*22.80 | |||||
| UWTH1D03LD-10WHR3 | 10 | 110(14-160) | 3.3 | 1 | 3000VAC | DIP | 50.80*40.00*11.80 | |||||
| UWTH1D05LD-10WHR3 | 10 | 110(14-160) | 5 | 1 | 3000VAC | DIP | 50.80*40.00*11.80 | |||||
| UWTH1D12LD-10WHR3 | 10 | 110(14-160) | 12 | 1 | 3000VAC | DIP | 50.80*40.00*11.80 | |||||
| UWTH1D15LD-10WHR3 | 10 | 110(14-160) | 15 | 1 | 3000VAC | DIP | 50.80*40.00*11.80 | |||||
| UWTH1D24LD-10WHR3 | 10 | 110(14-160) | 24 | 1 | 3000VAC | DIP | 50.80*40.00*11.80 | |||||
| UWTH1D28LD-10WHR3 | 10 | 110(14-160) | 28 | 1 | 3000VAC | DIP | 50.80*40.00*11.80 | |||||
| UWTH1D48LD-10WHR3 | 10 | 110(14-160) | 48 | 1 | 3000VAC | DIP | 50.80*40.00*11.80 | |||||
| UWTH1D54LD-10WHR3 | 10 | 110(14-160) | 54 | 1 | 3000VAC | DIP | 50.80*40.00*11.80 |
* For reference only. The detailed info please refer to the datasheet.
