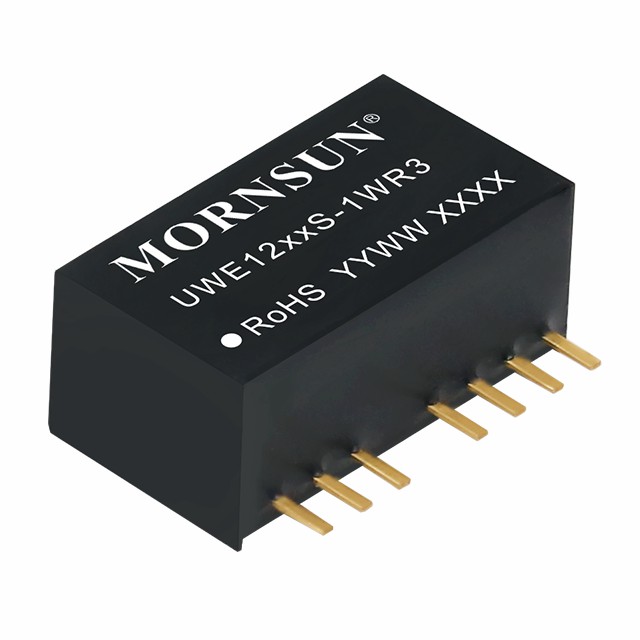

UWE_S-1WR3

Features

UWE/F_S-1WR3 series of isolated 1W DC-DC products with an ultra-wide 8:1 input voltage range. They feature efficiencies of up to 74%, 3000VDC input to output isolation, operating ambient temperature range of -40℃ to +105℃ , input under-voltage protection, output over-current, short circuit protection and they are widely used in applications such as medical care, industrial control, electric power, instruments and communication fields.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
UWE1205S-1WR3 1 12(4.5-36) ±5 2 3000 SIP 22.00*9.50*12.00
UWE1212S-1WR3 1 12(4.5-36) ±12 2 3000 SIP 22.00*9.50*12.00
UWE1215S-1WR3 1 12(4.5-36) ±15 2 3000 SIP 22.00*9.50*12.00

* For reference only. The detailed info please refer to the datasheet.
