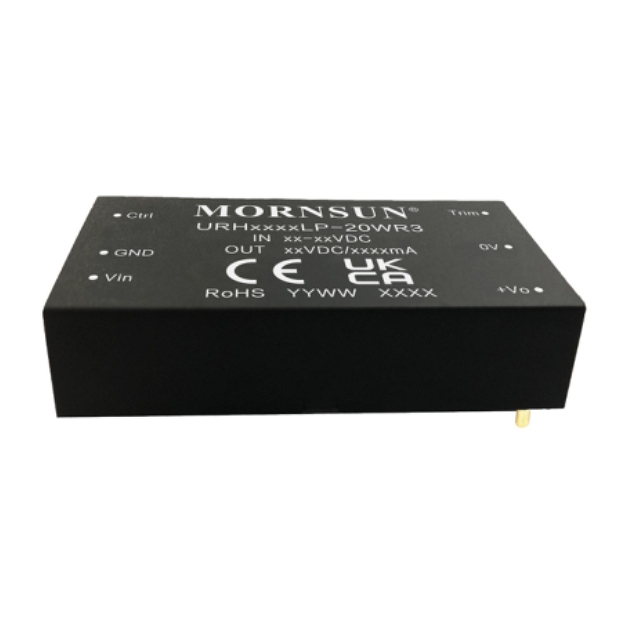

URH_LP-20WR3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
URH_LP-20WR3 series are isolated 20W DC-DC products with a 4:1 input voltage range. They feature efficiencies of up to 89%, 5000VAC input to output isolation, over-voltage, output short-circuit protection. They meet CLASS A of CISPR32/EN55032 EMI standards without extra components, meets EN60601-1 third edition medical certification standard (Pending). They are widely used in high isolation required area such as medical application.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| URH2403LP-20WR3 | 20 | 24(9-36) | 3.3 | 1 | 5000VAC | DIP | 51.50*26.50*12.00 | ||||
| URH2405LP-20WR3 | 20 | 24(9-36) | 5 | 1 | 5000VAC | DIP | 51.50*26.50*12.00 | ||||
| URH2412LP-20WR3 | 20 | 24(9-36) | 12 | 1 | 5000VAC | DIP | 51.50*26.50*12.00 | ||||
| URH2415LP-20WR3 | 20 | 24(9-36) | 15 | 1 | 5000VAC | DIP | 51.50*26.50*12.00 | ||||
| URH2424LP-20WR3 | 20 | 24(9-36) | 24 | 1 | 5000VAC | DIP | 51.50*26.50*12.00 | ||||
| URH4803LP-20WR3 | 20 | 48(18-75) | 3.3 | 1 | 5000VAC | DIP | 51.50*26.50*12.00 | ||||
| URH4805LP-20WR3 | 20 | 48(18-75) | 5 | 1 | 5000VAC | DIP | 51.50*26.50*12.00 | ||||
| URH4812LP-20WR3 | 20 | 48(18-75) | 12 | 1 | 5000VAC | DIP | 51.50*26.50*12.00 | ||||
| URH4815LP-20WR3 | 20 | 48(18-75) | 15 | 1 | 5000VAC | DIP | 51.50*26.50*12.00 | ||||
| URH4824LP-20WR3 | 20 | 48(18-75) | 24 | 1 | 5000VAC | DIP | 51.50*26.50*12.00 |
* For reference only. The detailed info please refer to the datasheet.
