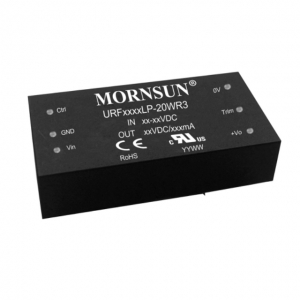

URF_LP-20WR3
Features
URF_LP-20WR3 series are isolated 20W DC-DC converter products with a 4:1 input voltage range. They feature efficiencies of up to 89%, 3000VDC input to output isolation, operating ambient temperature of -40℃ to +85℃, input under-voltage protection, output short circuit, over-voltage and over-current protection. The products meet CLASS A of CISPR32/EN55032 EMI standards, optional packages are offered for chassis or DIN-rail mounting (A2S, A4S), adding additional input reverse polarity protection. They are widely used in applications of requiring ultra-wide input voltage and high isolation, such as electrical power industry, data transmission, battery powered devices, telecommunication, distributed power systems, hybrid module system, remote control systems, industrial robotics, etc.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| URF2403LP-20WR3 | 20 | 24(9-36) | 3.3 | 1 | 3000VDC | DIP | 51.5*26.5*12 | ||||
| URF2405LP-20WR3 | 20 | 24(9-36) | 5 | 1 | 3000VDC | DIP | 51.5*26.5*12 | ||||
| URF2409LP-20WR3 | 20 | 24(9-36) | 9 | 1 | 3000VDC | DIP | 51.5*26.5*12 | ||||
| URF2412LP-20WR3 | 20 | 24(9-36) | 12 | 1 | 3000VDC | DIP | 51.5*26.5*12 | ||||
| URF2415LP-20WR3 | 20 | 24(9-36) | 15 | 1 | 3000VDC | DIP | 51.5*26.5*12 | ||||
| URF2418LP-20WR3 | 20 | 24(9-36) | 18 | 1 | 3000VDC | DIP | 51.5*26.5*12 | - | |||
| URF2424LP-20WR3 | 20 | 24(9-36) | 24 | 1 | 3000VDC | DIP | 51.5*26.5*12 | ||||
| URF4803LP-20WR3 | 20 | 48(18-75) | 3.3 | 1 | 3000VDC | DIP | 51.5*26.5*12 | ||||
| URF4805LP-20WR3 | 20 | 48(18-75) | 5 | 1 | 3000VDC | DIP | 51.5*26.5*12 | ||||
| URF4812LP-20WR3 | 20 | 48(18-75) | 12 | 1 | 3000VDC | DIP | 51.5*26.5*12 | ||||
| URF4815LP-20WR3 | 20 | 48(18-75) | 15 | 1 | 3000VDC | DIP | 51.5*26.5*12 | ||||
| URF4824LP-20WR3 | 20 | 48(18-75) | 24 | 1 | 3000VDC | DIP | 51.5*26.5*12 |
* For reference only. The detailed info please refer to the datasheet.
