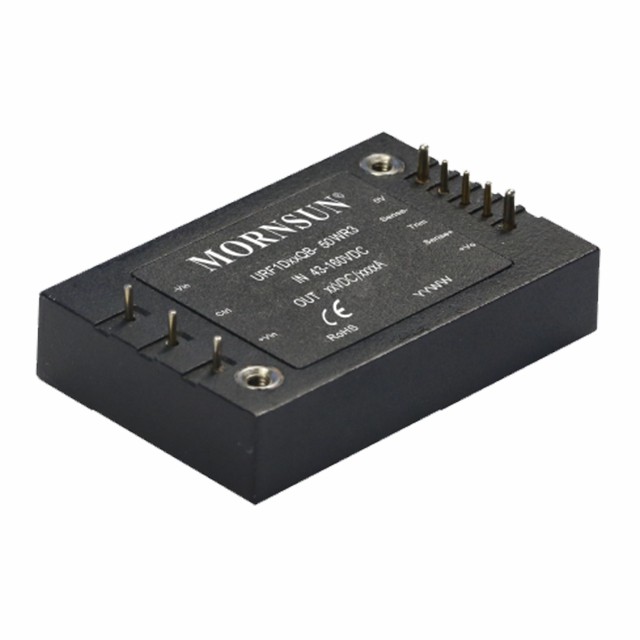

URF1D_QB-50WR3

Features

URF1D_QB-50WR3 series is a high-performance product specifically designed for a variety of railway applications. The DC-DC converters feature 50W output power with no requirement for minimum load, wide input voltage from 43-160VDC, and allowing operating temperature as high as 105℃. The products also provide input under-voltage protection, output over-voltage, short-circuit and over-temperature protection. Additional functions include remote On/Off control, remote sense compensation and output voltage trim adjustment. EN50155 approved and they are widely used in railway systems and associated equipment.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
URF1D03QB-50WR3 50 110(43-160) 3.3 1 3000VAC DIP 60.80*39.20*12.70
URF1D05QB-50WR3 50 110(43-160) 5 1 3000VAC DIP 60.80*39.20*12.70
URF1D12QB-50WR3 50 110(43-160) 12 1 3000VAC DIP 60.80*39.20*12.70
URF1D15QB-50WR3 50 110(43-160) 15 1 3000VAC DIP 60.80*39.20*12.70
URF1D24QB-50WR3 50 110(43-160) 24 1 3000VAC DIP 60.80*39.20*12.70
URF1D48QB-50WR3 50 110(43-160) 48 1 3000VAC DIP 60.80*39.20*12.70

* For reference only. The detailed info please refer to the datasheet.
