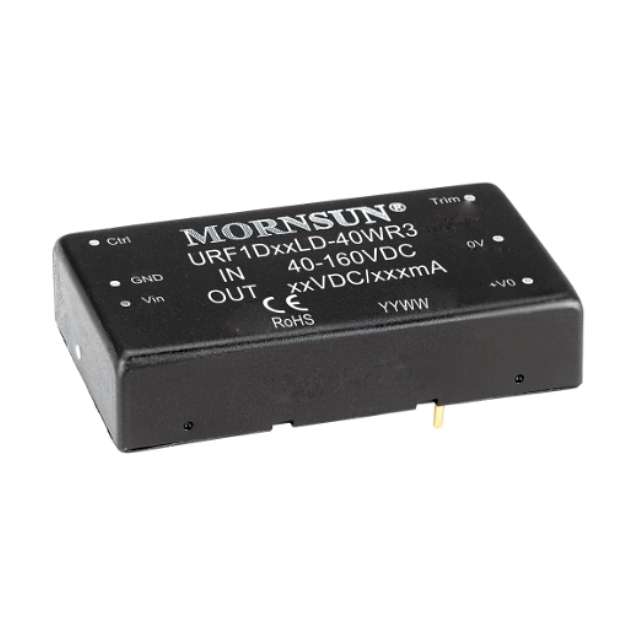

URF1D_LD-40WR3

Features

URF1D_LD-40WR3 series are isolated 40W DC-DC converter products have an ultra-wide input voltage of 40-160VDC and feature efficiency of up to 91%. Meet reinforced isolation, input to output isolation is tested with 3000VDC/1500VAC and the converters safely operate in an ambient temperature of -40℃ to +85℃. Input under-voltage protection, output short circuit, over-current, over-voltage, over- temperature protection. It is ideally suiting electronic equipment and railway vehicle applications using 72V, 96V and 110V battery voltages.

URF1D_LD-40WR3
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
URF1D03LD-40WR3 40 40~160 3.3 1 3000 DIP 50.80*25.40*11.80 3D MODEL PCB Symbol CE - URF1D03LD-40WR3 - sample request buy on line
URF1D05LD-40WR3 40 40~160 5 1 3000 DIP 50.80*25.40*11.80 3D MODEL PCB Symbol CE - URF1D05LD-40WR3 - sample request buy on line
URF1D12LD-40WR3 40 40~160 12 1 3000 DIP 50.80*25.40*11.80 3D MODEL PCB Symbol CE - URF1D12LD-40WR3 - sample request buy on line
URF1D15LD-40WR3 40 40~160 15 1 3000 DIP 50.80*25.40*11.80 3D MODEL PCB Symbol CE - URF1D15LD-40WR3 - sample request buy on line
URF1D24LD-40WR3 40 40~160 24 1 3000 DIP 50.80*25.40*11.80 3D MODEL PCB Symbol CE - URF1D24LD-40WR3 - sample request buy on line
URF1D48LD-40WR3 40 40~160 48 1 3000 DIP 50.80*25.40*11.80 3D MODEL PCB Symbol CE - URF1D48LD-40WR3 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
URF1D03LD-40WR3
URF1D05LD-40WR3
URF1D12LD-40WR3
URF1D15LD-40WR3
URF1D24LD-40WR3
URF1D48LD-40WR3
