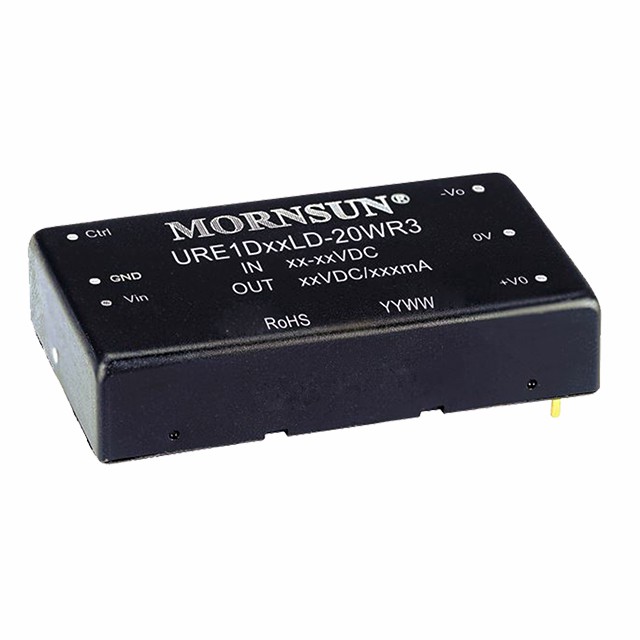

URE1D_LD-20WR3
Features
URE1D_LD-20WR3 series are isolated 20W DC-DC converter products with an ultra-wide 4:1 input voltage and feature efficiency of up to 86%. Input to output isolation is tested with 3000VDC / 1500VAC and the converters safely operate in an ambient temperature of -40℃to +85℃. Input under-voltage protection, output short-circuit, over-current, over–voltage, over-temperature protection. Offered with various mounting options, it is ideally suiting electronic equipment and railway vehicle applications using 72V, 96V and 110V battery voltages.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| URE1D12LD-20WR3 | 20 | 110(40-160) | ±12 | 2 | 3000VDC | DIP | 50.80*25.40*11.80 | - | ||||
| URE1D15LD-20WR3 | 20 | 110(40-160) | ±15 | 2 | 3000VDC | DIP | 50.80*25.40*11.80 | - | ||||
| URE1D24LD-20WR3 | 20 | 110(40-160) | ±24 | 2 | 3000VDC | DIP | 50.80*25.40*11.80 | - |
* For reference only. The detailed info please refer to the datasheet.
