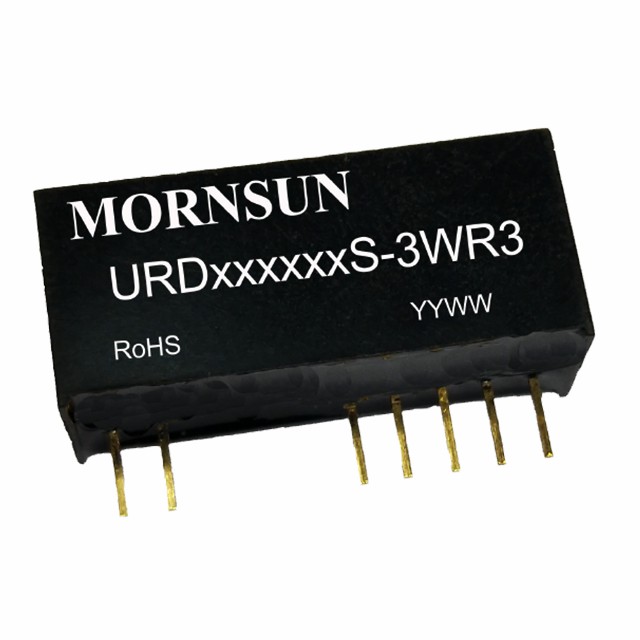

URD_S-3WR3
Features
URD_S-3WR3 series of isolated DC-DC converter products with an ultra-wide 4:1 input voltage, input to output isolation is tested with 3000VDC and the converters safely operate ambient temperature of -40℃ to +85℃, input under-voltage protection, over-current, short circuit protection. They meets CLASS B of CISPR32/EN55032 EMI standards without extra components, which make them widely applied in data transmission device, tele-comunication device, distributed power supply system, hybrid module system, remote control system fields
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation(VDC) | Package | Dimension(mm) | Footprint & 3D | Certification | Datasheet | Sample | Buy |
| URD480505S-3WR3 | 3 | 18~75 | 5,5 | 2 | 3000 | SIP | 27.40*9.50*12.00 |
|
-
|
-
|
|
|
| URD480512S-3WR3 | 3 | 18~75 | 5,12 | 2 | 3000 | SIP | 27.40*9.50*12.00 |
|
-
|
-
|
|
|
| URD480524S-3WR3 | 3 | 18~75 | 5,24 | 2 | 3000 | SIP | 27.40*9.50*12.00 |
|
-
|
-
|
|
|
* For reference only. The detailed info please refer to the datasheet.
| Product No. |
| URD480505S-3WR3 |
| URD480512S-3WR3 |
| URD480524S-3WR3 |
