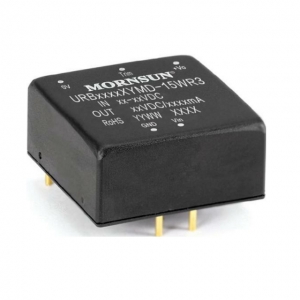

URB_XYMD-15WR3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
URB_XYMD-15WR3 series of isolated DC-DC converter products feature an ultra-wide 4:1 input voltage with efficiencies of up to 91%,
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| URB2403XYMD-15WR3 | 15 | 24(9-36) | 3.3 | 1 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - | |||
| URB2405XYMD-15WR3 | 15 | 24(9-36) | 5 | 1 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - | |||
| URB2412XYMD-15WR3 | 15 | 24(9-36) | 12 | 1 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - | |||
| URB2415XYMD-15WR3 | 15 | 24(9-36) | 15 | 1 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - | |||
| URB2424XYMD-15WR3 | 15 | 24(9-36) | 24 | 1 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - | |||
| URB4803XYMD-15WR3 | 15 | 48(18-75) | 3.3 | 1 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - | |||
| URB4812XYMD-15WR3 | 15 | 48(18-75) | 12 | 1 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - | |||
| URB4815XYMD-15WR3 | 15 | 48(18-75) | 15 | 1 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - | |||
| URB4824XYMD-15WR3 | 15 | 48(18-75) | 24 | 1 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - | |||
| URB4805XYMD-15WR3 | 15 | 48(18-75) | 5 | 1 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - |
* For reference only. The detailed info please refer to the datasheet.
