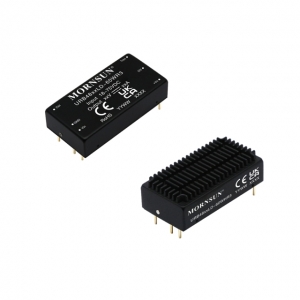

URB48_LD-60W(H)R3
Features
URB48_LD-60W(H)R3 series of isolated 60W DC-DC converter products with an ultra-wide 4:1 input voltage range.They feature efficiencies up to 93.8%,input to output isolation is tested with 1600VDC and the converter safety operate ambient temperature of -40℃ to +105℃,input under-voltage protection,output short-circuit,over-current,over-voltage protection.They are ideally and widely used
in applications such as industrial control,electric power,instruments and
communications fields.
R3.jpg)
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| URB4805LD-60WR3 | 60 | 48(18-75) | 5 | 1 | 1600VDC | DIP | 50.80*25.40*11.80 | |||||
| URB4812LD-60WR3 | 60 | 48(18-75) | 12 | 1 | 1600VDC | DIP | 50.80*25.40*11.80 | |||||
| URB4815LD-60WR3 | 60 | 48(18-75) | 15 | 1 | 1600VDC | DIP | 50.80*25.40*11.80 | |||||
| URB4824LD-60WR3 | 60 | 48(18-75) | 24 | 1 | 1600VDC | DIP | 50.80*25.40*11.80 | |||||
| URB4805LD-60WHR3 | 60 | 48(18-75) | 5 | 1 | 1600VDC | DIP | 51.40*26.20*16.50 | |||||
| URB4812LD-60WHR3 | 60 | 48(18-75) | 12 | 1 | 1600VDC | DIP | 51.40*26.20*16.50 | |||||
| URB4815LD-60WHR3 | 60 | 48(18-75) | 15 | 1 | 1600VDC | DIP | 51.40*26.20*16.50 | |||||
| URB4824LD-60WHR3 | 60 | 48(18-75) | 24 | 1 | 1600VDC | DIP | 51.40*26.20*16.50 |
* For reference only. The detailed info please refer to the datasheet.
