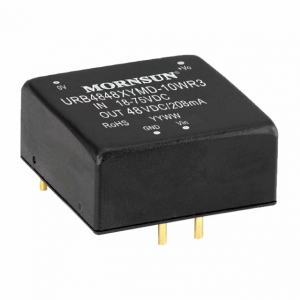

URB4848XYMD-10WR3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
URB4848XYMD-10WR3 10W DC-DC converter products feature an ultra-wide with 4:1 input voltage with efficiencies of up to 87%, 1500VDC input to output isolation, operating ambient temperature range of -40℃ to +85℃ , input under-voltage protection, output over-voltage, over-current, short-circuit protection. They meet CLASS A of CISPR32/EN55032 EMI standards without external components, adding additional input reverse polarity protection and they are widely used in applications such as industrial control, electric power, instruments, communication and railway applications.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| URB4848XYMD-10WR3 | 10 | 48(18-75) | 48 | 1 | 1500VDC | DIP | 25.40*25.40*11.70 |
* For reference only. The detailed info please refer to the datasheet.
