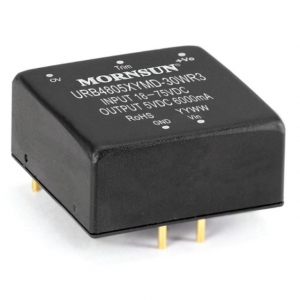

URB4805XYMD-30WR3
Features
URB4805XYMD-30WR3 of isolated 30W DC-DC converter products with an ultra-wide 4:1 input voltage range.They feature efficiencies up to
88%,input to output isolation is tested with 1500VDC and the converter safety operate ambient temperature of -40℃ to + 85℃,input
under-voltage protection,output over-voltage,over-current,short-circuit,protection.They are ideally and widely used in applications such
as industrial control,electric power,instruments and communications.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| URB4805XYMD-30WR3 | 30 | 48(18-75) | 5 | 1 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - |
* For reference only. The detailed info please refer to the datasheet.
