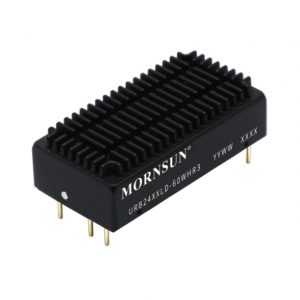

URB24_LD-60W(H)R3
Features
URB24_LD-60W(H)R3seriesofisolated60WDC-DCconverterproductswithanultra-wide4:1inputvoltagerange.Theyfeatureefficiencies upto93%,inputtooutputisolationistestedwith1500VDCandtheconvertersafetyoperateambienttemperatureof-40℃to+105℃,input under-voltageprotection,outputover-voltage,over-current,short-circuitprotection.Theyareideallyandwidelyusedinapplicationssuch asindustrialcontrol,electricpower,instrumentsandcommunicationsfields.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| URB2405LD-60WR3 | 60 | 24(9-36) | 5 | 1 | 1500VDC | DIP | 50.80*25.40*11.80 | |||||
| URB2412LD-60WR3 | 60 | 24(9-36) | 12 | 1 | 1500VDC | DIP | 50.80*25.40*11.80 | |||||
| URB2415LD-60WR3 | 60 | 24(9-36) | 15 | 1 | 1500VDC | DIP | 50.80*25.40*11.80 | |||||
| URB2424LD-60WR3 | 60 | 24(9-36) | 24 | 1 | 1500VDC | DIP | 50.80*25.40*11.80 | |||||
| URB2405LD-60WHR3 | 60 | 24(9-36) | 5 | 1 | 1500VDC | DIP | 51.40*26.20*16.50 | |||||
| URB2412LD-60WHR3 | 60 | 24(9-36) | 12 | 1 | 1500VDC | DIP | 51.40*26.20*16.50 | |||||
| URB2415LD-60WHR3 | 60 | 24(9-36) | 15 | 1 | 1500VDC | DIP | 51.40*26.20*16.50 | |||||
| URB2424LD-60WHR3 | 60 | 24(9-36) | 24 | 1 | 1500VDC | DIP | 51.40*26.20*16.50 | |||||
| URB2405LD-60WR3A2S | 60 | 24(9-36) | 5 | 1 | 1500VDC | DIP | 76.00*31.50*21.20 | |||||
| URB2412LD-60WR3A2S | 60 | 24(9-36) | 12 | 1 | 1500VDC | DIP | 76.00*31.50*21.20 | |||||
| URB2415LD-60WR3A2S | 60 | 24(9-36) | 15 | 1 | 1500VDC | DIP | 76.00*31.50*21.20 | |||||
| URB2424LD-60WR3A2S | 60 | 24(9-36) | 24 | 1 | 1500VDC | DIP | 76.00*31.50*21.20 | |||||
| URB2405LD-60WR3A4S | 60 | 24(9-36) | 5 | 1 | 1500VDC | DIP | 76.00*31.50*25.80 | |||||
| URB2415LD-60WR3A4S | 60 | 24(9-36) | 15 | 1 | 1500VDC | DIP | 76.00*31.50*25.80 | |||||
| URB2424LD-60WR3A4S | 60 | 24(9-36) | 24 | 1 | 1500VDC | DIP | 76.00*31.50*25.80 | |||||
| URB2405LD-60WHR3A2S | 60 | 24(9-36) | 5 | 1 | 1500VDC | DIP | 76.00*31.50*25.30 | |||||
| URB2412LD-60WHR3A2S | 60 | 24(9-36) | 12 | 1 | 1500VDC | DIP | 76.00*31.50*25.30 | |||||
| URB2415LD-60WHR3A2S | 60 | 24(9-36) | 15 | 1 | 1500VDC | DIP | 76.00*31.50*25.30 | |||||
| URB2424LD-60WHR3A2S | 60 | 24(9-36) | 24 | 1 | 1500VDC | DIP | 76.00*31.50*25.30 | |||||
| URB2405LD-60WHR3A4S | 60 | 24(9-36) | 5 | 1 | 1500VDC | DIP | 76.00*31.50*29.90 | |||||
| URB2412LD-60WHR3A4S | 60 | 24(9-36) | 12 | 1 | 1500VDC | DIP | 76.00*31.50*29.90 | |||||
| URB2415LD-60WHR3A4S | 60 | 24(9-36) | 15 | 1 | 1500VDC | DIP | 76.00*31.50*29.90 | |||||
| URB2424LD-60WHR3A4S | 60 | 24(9-36) | 24 | 1 | 1500VDC | DIP | 76.00*31.50*29.90 |
* For reference only. The detailed info please refer to the datasheet.
