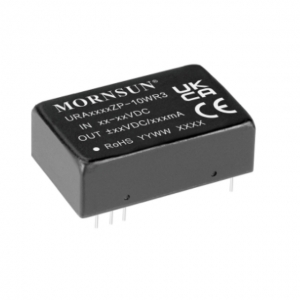

URA_ZP-10WR3

Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.

Features

MORNSUN_DC/DC - Wide Input Converter_URA_ZP-10WR3
MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample
URA2405ZP-10WR3 10 24(9-36) ±5 2 1500VDC DIP 32.00*20.00*10.80
URA2412ZP-10WR3 10 24(9-36) ±12 2 1500VDC DIP 32.00*20.00*10.80
URA2415ZP-10WR3 10 24(9-36) ±15 2 1500VDC DIP 32.00*20.00*10.80
URA4812ZP-10WR3 10 48(18-75) ±12 2 1500VDC DIP 32.00*20.00*10.80
URA4815ZP-10WR3 10 48(18-75) ±15 2 1500VDC DIP 32.00*20.00*10.80

* For reference only. The detailed info please refer to the datasheet.
