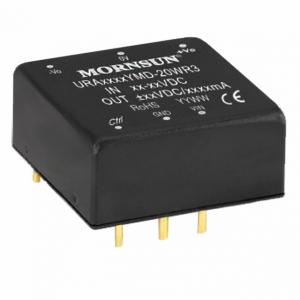

URA_YMD-20WR3
Features
URA_YMD-20WR3 series are isolated 20W DC-DC converter products with an ultra-wide 4:1 input voltage and feature efficiencies of up to 90%, input to output isolation is tested with 1500VDC and the converters safely operate in an ambient temperature of -40℃ to +105℃, input under-voltage protection, output over-voltage, over-current, short-circuit protection, optional packages are offered for chassis or DIN-rail mounting (A2S, A4S), adding additional input reverse polarity protection and they are widely used in applications such as industrial control, electric power, instruments and communication fields.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| URA2405YMD-20WR3 | 20 | 24(9-36) | ±5 | 2 | 1500VDC | DIP | 25.40*25.40*11.70 | ||||
| URA2412YMD-20WR3 | 20 | 24(9-36) | ±12 | 2 | 1500VDC | DIP | 25.40*25.40*11.70 | ||||
| URA2415YMD-20WR3 | 20 | 24(9-36) | ±15 | 2 | 1500VDC | DIP | 25.40*25.40*11.70 | ||||
| URA2424YMD-20WR3 | 20 | 24(9-36) | ±24 | 2 | 1500VDC | DIP | 25.40*25.40*11.70 | ||||
| URA4805YMD-20WR3 | 20 | 48(18-75) | ±5 | 2 | 1500VDC | DIP | 25.40*25.40*11.70 | ||||
| URA4812YMD-20WR3 | 20 | 48(18-75) | ±12 | 2 | 1500VDC | DIP | 25.40*25.40*11.70 | ||||
| URA4815YMD-20WR3 | 20 | 48(18-75) | ±15 | 2 | 1500VDC | DIP | 25.40*25.40*11.70 | ||||
| URA4824YMD-20WR3 | 20 | 48(18-75) | ±24 | 2 | 1500VDC | DIP | 25.40*25.40*11.70 |
* For reference only. The detailed info please refer to the datasheet.
