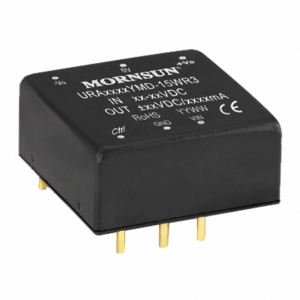

URA_YMD-15WR3
Features
URA_YMD-15WR3 series are isolated DC-DC converter products with an ultra-wide 4:1 input voltage with efficiencies of up to 91%, 1500VDC input to output isolation, an operating ambient temperature range of -40℃ to +105℃, input undervoltage protection, output overvoltage, overcurrent, short circuit protection, CISPR32/EN55032 CLASS A EMI compliant without external components. It is widely used in industrial control, electric power, instruments and communications applications. Optional packages are offered for chassis or DIN-rail mounting (A2S, A4S).
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| URA2405YMD-15WR3 | 15 | 24(9-36) | ±5 | 2 | 1500VDC | DIP | 25.40*25.40*11.70 | ||||
| URA2412YMD-15WR3 | 15 | 24(9-36) | ±12 | 2 | 1500VDC | DIP | 25.40*25.40*11.70 | ||||
| URA2415YMD-15WR3 | 15 | 24(9-36) | ±15 | 2 | 1500VDC | DIP | 25.40*25.40*11.70 | ||||
| URA2424YMD-15WR3 | 15 | 24(9-36) | ±24 | 2 | 1500VDC | DIP | 25.40*25.40*11.70 | ||||
| URA4805YMD-15WR3 | 15 | 48(18-75) | ±5 | 2 | 1500VDC | DIP | 25.40*25.40*11.70 | ||||
| URA4812YMD-15WR3 | 15 | 48(18-75) | ±12 | 2 | 1500VDC | DIP | 25.40*25.40*11.70 | ||||
| URA4815YMD-15WR3 | 15 | 48(18-75) | ±15 | 2 | 1500VDC | DIP | 25.40*25.40*11.70 | ||||
| URA4824YMD-15WR3 | 15 | 48(18-75) | ±24 | 2 | 1500VDC | DIP | 25.40*25.40*11.70 |
* For reference only. The detailed info please refer to the datasheet.
