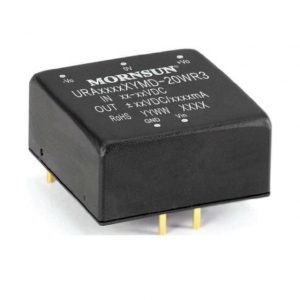

URA_XYMD-20WR3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
URA_XYMD-20WR3 series of isolated 20W DC-DC converter products with an ultra-wide 4:1 input voltage and feature efficiencies of up to
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| URA2405XYMD-20WR3 | 20 | 9-75 | ±5 | 2 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - | |||
| URA2415XYMD-20WR3 | 20 | 9-75 | ±15 | 2 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - | |||
| URA2424XYMD-20WR3 | 20 | 9-75 | ±24 | 2 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - | |||
| URA4805XYMD-20WR3 | 20 | 9-75 | ±5 | 2 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - | |||
| URA4812XYMD-20WR3 | 20 | 9-75 | ±12 | 2 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - | |||
| URA4815XYMD-20WR3 | 20 | 9-75 | ±15 | 2 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - | |||
| URA4824XYMD-20WR3 | 20 | 9-75 | ±24 | 2 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - | |||
| URA2412XYMD-20WR3 | 20 | 9-75 | ±12 | 2 | 1500VDC | DIP | 25.40 * 25.40 * 11.70 | - |
* For reference only. The detailed info please refer to the datasheet.
