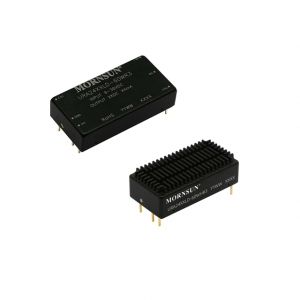

URA24_LD-60W(H)R3
Features
URA24_LD-60W(H)R3 is isolated 60W DC-DC converter products have an ultra-wide 4:1 input voltage and feature efficiency of up to 91.5%,input to output isolation is tested with 2250VDC and the converters safely operate in an ambient temperature of -40℃ to +105℃,input under-voltage protection,output over-voltage,over-current,short-circuit protection.they are widely used in applications such as industrial control,electric power,instruments,communication.
R3.jpg)
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| URA2412LD-60WR3 | 60 | 24(9-36) | ±12 | 2 | 2250VDC | DIP | 50.80*25.40*11.80 | - | ||||
| URA2415LD-60WR3 | 60 | 24(9-36) | ±15 | 2 | 2250VDC | DIP | 50.80*25.40*11.80 | - | ||||
| URA2424LD-60WR3 | 60 | 24(9-36) | ±24 | 2 | 2250VDC | DIP | 50.80*25.40*11.80 | - | ||||
| URA2412LD-60WHR3 | 60 | 24(9-36) | ±12 | 2 | 2250VDC | DIP | 51.40*26.20*16.50 | - | ||||
| URA2415LD-60WHR3 | 60 | 24(9-36) | ±15 | 2 | 2250VDC | DIP | 51.40*26.20*16.50 | - | ||||
| URA2424LD-60WHR3 | 60 | 24(9-36) | ±24 | 2 | 2250VDC | DIP | 51.40*26.20*16.50 | - |
* For reference only. The detailed info please refer to the datasheet.
