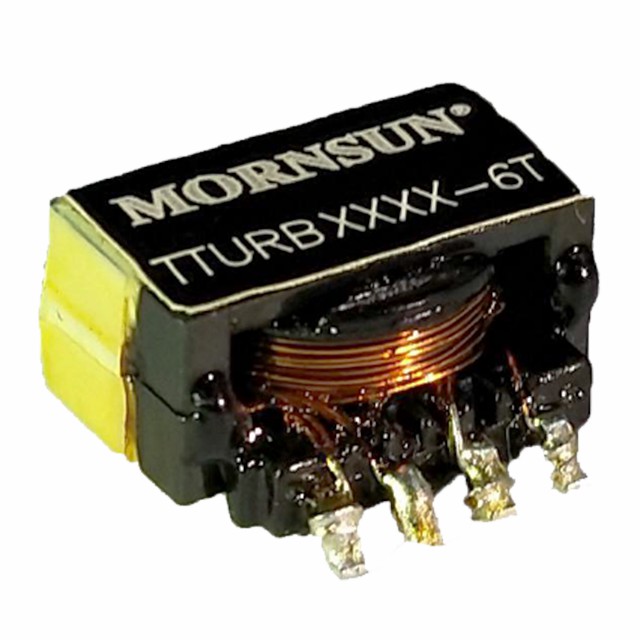

TTURB1D-6T

Features

TTURB1D-6T transformer series feature 2250VDC primary to secondary isolation and an operating ambient temperature range of -40℃ to +125℃. It can be matched to used with Mornsun control IC SCM1101AMA to achieve flyback power supply design with an 4:1 wide input volatge range, various protection functions and superior EMI performance.

TTURB1D-6T
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Skeleton structure Topology Design Reference 3D Impression Drawing (.stp) Certification Datasheet Sample Buy
TTURB1D05-6T 6 40~160 5 1 2250 SMD ER11.5 Flyback - - - TTURB1D05-6T - sample request buy on line
TTURB1D12-6T 6 40~160 12 1 2250 SMD ER11.5 Flyback - - - TTURB1D12-6T - sample request buy on line
TTURB1D15-6T 6 40~160 15 1 2250 SMD ER11.5 Flyback - - - TTURB1D15-6T - sample request buy on line
TTURB1D24-6T 6 40~160 24 1 2250 SMD ER11.5 Flyback - - - TTURB1D24-6T - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
TTURB1D05-6T
TTURB1D12-6T
TTURB1D15-6T
TTURB1D24-6T
