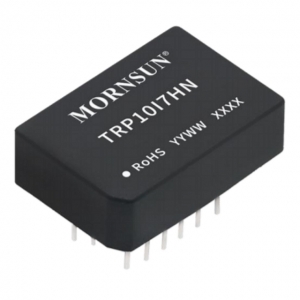

TRP10I7HN
Features
TRP10I7HN is an isolated temperature measurement module product used to detect PT100 thermal resistance. It can be used in industrial thermostats, temperature measuring instruments, petrochemicals, power temperature monitoring and other fields. The product can convert the on-site thermal resistance signal into IIC digital signal, and then use the standard IIC interface to output temperature data directly, so as to realize the on-site temperature signal collection and transmission. At the same time, the product with independent power supply, and the input and output are isolated from each other. In addition, this series of products have the function of two-way PT100 thermal resistance signal acquisition, and adopt a small volume design to meet the needs of on-site high-density installation.
| Product No. | Input Signal Type | Input Signal Type | Output Signal Type | Programmable | Field Signal | No of Channel | Vin(VDC) | Vout(VDC) | Footprint & 3D | Datasheet | Sample |
| TRP10I7HN | Pt100 | Heat resistance | IIC信号 | - | - | 2 | 3.3 | - |
* For reference only. The detailed info please refer to the datasheet.
| Product No. |
