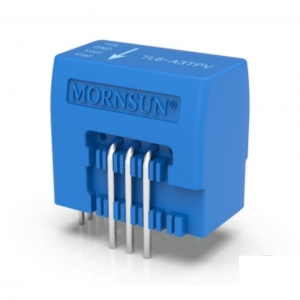

TLxx-A3TPV
Features
TLxx-A3TPV series Closed-loop Hall Current Transducer ---- is used for
isolation measurement between primary and secondary,voltage signal
output.It is often used to measure DC,AC,pulse current,etc.Circuit board
welded type,the installation is convenient,change the connection mode
of one welding pin to change three range,suitable for avariety of
occasions.
Application areas:photovoltaic,motor drive,welding power
supply,power supply equipment,power heating equipment,large UPS
equipment,etc.
| Product No. | Supply Voltage(VDC) | Measurement | Primary nominal rated RMS current | Rated Output range | Precision | Linearity | Package | Turns ratio | Turns ratio | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| TL6-A3TPV | 5(±5%) | AC/DC | ±6 | Uref±0.625 | 0.0045 | 0.001 | PCB | 1/1600 | 1/1600 | - | ||||
| TL15-A3TPV | 5(±5%) | AC/DC | ±15 | Uref±0.625 | 0.0045 | 0.001 | PCB | 1/1600 | 1/1600 | - | ||||
| TL25-A3TPV | 5(±5%) | AC/DC | ±25 | Uref±0.625 | 0.0045 | 0.001 | PCB | 1/1600 | 1/1600 | - | ||||
| TL50-A3TPV | 5(±5%) | AC/DC | ±50 | Uref±0.625 | 0.0045 | 0.001 | PCB | 1/1600 | 1/1600 | - |
* For reference only. The detailed info please refer to the datasheet.
