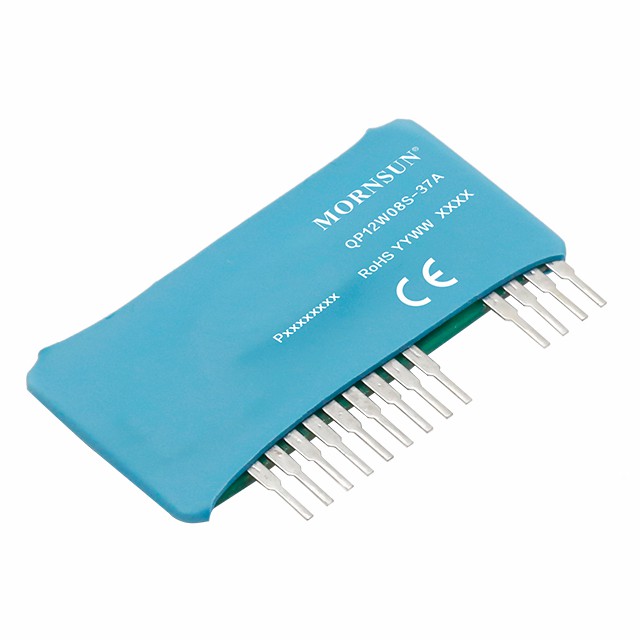

QP12W08S-37A
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
QP12W08S-37A is an integrated hybrid IGBT driver designed with a built-in isolation DC-DC converter. This device is a fully isolated gate drive circuit consistin g of an optimally isolated gate drive amplifier and an isolated DC-DC converter. The gate driver provides a fault protection function based on desaturation detection and fault output.
| Product No. | VCE Max | Supply Voltage VCC(VDC) | Supply Voltage VEE(VDC) | Gate Voltage | Max Frequency | Drive Channel | Isolation(VDC) | Package | Features | Footprint & 3D | Markings | Datasheet | Sample |
| QP12W08S-37A | 1700V | 15 | -9 | +15V/-10V | 20kHz | 1 | 3750 | SIP | Built-in isolated DC-DC power su |
* For reference only. The detailed info please refer to the datasheet.
