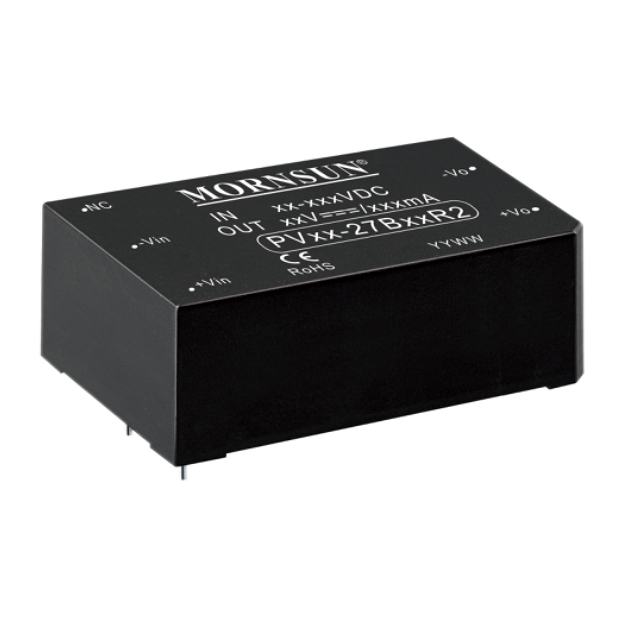

PVxx-27BxxR2

Features

PVxx-27BxxR2 series is regulated DC-DC converters with an ultra-wide and ultra-high DC input of 100-1000VDC. The products feature high efficiency, high reliability, high insulation and a high level of safety protection. This type of power supply is widely used in renewable energy industries such as photovoltaic, power generation, energy storage, inverters and high-voltage DC conversions. The converters provide multiple protection features and guarantee stable and safe operating environments even under abnormal working conditions.

PVxx-27BxxR2
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
PV05-27B05R2 5 100~1000 5 1 4000VAC DIP 70.0*48.0*23.5 3D MODEL CE - PV05-27B05R2 - sample request buy on line
PV10-27B05R2 10 100~1000 5 1 4000VAC DIP 70.0*48.0*23.5 3D MODEL CE - PV10-27B05R2 - sample request buy on line
PV10-27B09R2 10 100~1000 9 1 4000VAC DIP 70.0*48.0*23.5 3D MODEL CE - PV10-27B09R2 - sample request buy on line
PV10-27B24R2 10 100~1000 24 1 4000VAC DIP 70.0*48.0*23.5 3D MODEL CE - PV10-27B24R2 - sample request buy on line
PV15-27B12R2 15 100~1000 12 1 4000VAC DIP 70.0*48.0*23.5 3D MODEL CE - PV15-27B12R2 - sample request buy on line
PV15-27B15R2 15 100~1000 15 1 4000VAC DIP 70.0*48.0*23.5 3D MODEL CE - PV15-27B15R2 - sample request buy on line
PV15-27B24R2 15 100~1000 24 1 4000VAC DIP 70.0*48.0*23.5 3D MODEL CE - PV15-27B24R2 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
PV05-27B05R2
PV10-27B05R2
PV10-27B09R2
PV10-27B24R2
PV15-27B12R2
PV15-27B15R2
PV15-27B24R2
