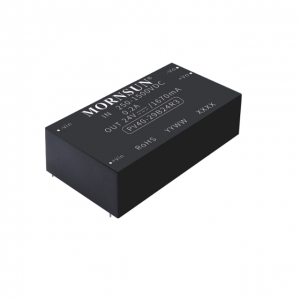

PV40-29BxxR3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
PV40-29BxxR3 series is regulated DC-DC converter swithanultra-wide DC input of 250-1500VDC.The product sfeature high efficiency,high
reliability,high insulation and high level of safety.This type of power supplyis widely used inrenewable energy in dustries such as
photo voltaic,power generation,energy storage,inverters and high-voltage DC conversions.The converters provide multi pleprotection
features and guarantee stable and safe operating environments even under abnormal working conditions.For extremely harsh EMC
environment,we recommend using the application circuit show in Design Reference of this datasheet.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| PV40-29B12R3 | 40 | 250-1500 | 12 | 1 | DIP | 109.00*58.50*30.00 | ||||
| PV40-29B24R3 | 40 | 250-1500 | 24 | 1 | DIP | 109.00*58.50*30.00 | ||||
| PV40-29B28R3 | 40 | 250-1500 | 28 | 1 | DIP | 109.00*58.50*30.00 | ||||
| PV40-29B48R3 | 40 | 250-1500 | 48 | 1 | DIP | 109.00*58.50*30.00 | - |
* For reference only. The detailed info please refer to the datasheet.
