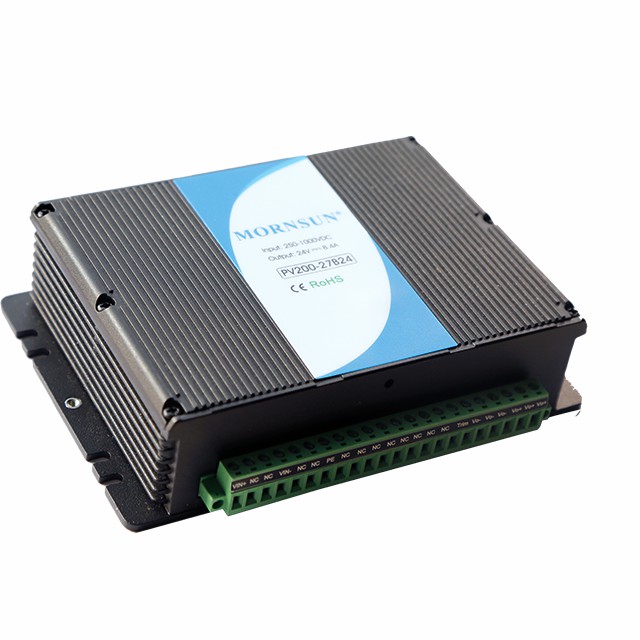

PV200-27Bxx
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
PV200-27Bxx series is a regulated DC-DC converter with an ultra-wide DC input range. The product features high efficiency, high reliability, high insulation and a high level of safety protection. This type of power supply is widely used in renewable energy industries such photo voltaic, power generation, energy storage, inverters and high voltage DC conversions. The converters provide multiple protection features and guarantee stable and safe operating environments even under abnormal working conditions.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| PV200-27B12 | 120 | 200-1000 | 12 | 1 | Chassis | 168.00*121.35*42.50 | ||||
| PV200-27B15 | 150 | 200-1000 | 15 | 1 | Chassis | 168.00*121.35*42.50 | ||||
| PV200-27B24 | 200 | 200-1000 | 24 | 1 | Chassis | 168.00*121.35*42.50 | ||||
| PV200-27B26 | 200 | 200-1000 | 26 | 1 | Chassis | 168.00*121.35*42.50 | ||||
| PV200-27B48 | 200 | 200-1000 | 48 | 1 | Chassis | 168.00*121.35*42.50 |
* For reference only. The detailed info please refer to the datasheet.
