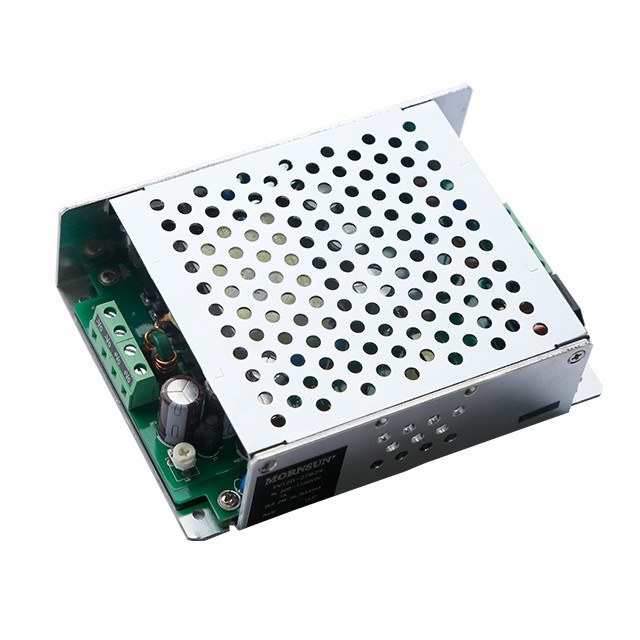

PV120-27Bxx
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
PV120-27Bxx series are regulated DC-DC converters with an ultra-high DC input of 200-1100VDC. This type of power supply is widely used in renewable energy industries such as photovoltaic, power generation, energy storage, inverters and high-voltage DC conversions. The converters provide multiple protection features and guarantee stable and safe operating environments even under abnormal working conditions.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| PV120-27B12 | 90 | 200-1100 | 12 | 1 | Chassis | 144.5*105*40 | - | |||
| PV120-27B15 | 100 | 200-1100 | 15 | 1 | Chassis | 144.5*105*40 | - | |||
| PV120-27B24 | 120 | 200-1100 | 24 | 1 | Chassis | 144.5*105*40 | - | |||
| PV120-27B26 | 120 | 200-1100 | 26 | 1 | Chassis | 144.5*105*40 | - | |||
| PV120-27B28 | 120 | 200-1100 | 28 | 1 | Chassis | 144.5*105*40 | - | |||
| PV120-27B48 | 120 | 200-1100 | 48 | 1 | Chassis | 144.5*105*40 | - |
* For reference only. The detailed info please refer to the datasheet.
