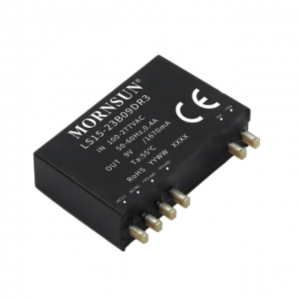

LS15-23BxxDR3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
LS15-23BxxDR3seriesisoneofMornsun’sminiaturizedpottinghighlyefficientgreenpowerAC-DCConverters.Theyfeaturewideinputrange acceptingeitherACorDCvoltage,highreliability,lowpowerconsumption,reinforcedisolationandstrongapplicability.Allmodelsare particularlysuitableforindustrialcontrol,electricpower,instrumentationandsmarthomeapplicationswhichhavehighrequirementfor dimensionanddon’thavehighrequirementonEMC.ForextremelyharshEMCenvironment,werecommendusingtheapplicationcircuit showinDesignReferenceofthisdatasheet.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| LS15-23B03DR3 | 9.9 | 85-305 | 100-430 | 3.3 | 3000mA | 1 | 4000VAC | SIP | 33.34*21.50*9.72 | ||||
| LS15-23B05DR3 | 15 | 85-305 | 100-430 | 5 | 3000mA | 1 | 4000VAC | SIP | 33.34*21.50*9.72 | ||||
| LS15-23B09DR3 | 15 | 85-305 | 100-430 | 9 | 1670mA | 1 | 4000VAC | SIP | 33.34*21.50*9.72 | ||||
| LS15-23B12DR3 | 15 | 85-305 | 100-430 | 12 | 1250mA | 1 | 4000VAC | SIP | 33.34*21.50*9.72 | ||||
| LS15-23B15DR3 | 15 | 85-305 | 100-430 | 15 | 1000mA | 1 | 4000VAC | SIP | 33.34*21.50*9.72 | ||||
| LS15-23B24DR3 | 15 | 85-305 | 100-430 | 24 | 625mA | 1 | 4000VAC | SIP | 33.34*21.50*9.72 | ||||
| LS15-23B12DR3-C | 15 | 85-305 | 100-430 | 12 | 1250mA | 1 | 4000VAC | SIP | 33.34*21.50*9.72 | - | |||
| LS15-23B15DR3-C | 15 | 85-305 | 100-430 | 15 | 1000mA | 1 | 4000VAC | SIP | 33.34*21.50*9.72 | - | |||
| LS15-23B24DR3-C | 15 | 85-305 | 100-430 | 24 | 625mA | 1 | 4000VAC | SIP | 33.34*21.50*9.72 | - |
* For reference only. The detailed info please refer to the datasheet.
