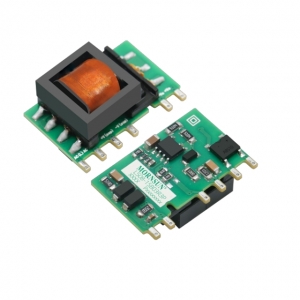

LS08-15BxxR3P
Features
LS08-15BxxR3 Pseries is one of Mornsun’s highly efficient green power AC-DC Converter series.They feature wide input range accepting either AC or DC voltage, low power consumption,high reliability and reinforced isolation.All models are particularly suitable for industrial control,electric power,instrumentation and smart home applications which have high requirement for dimension and don’t have high
requirement on EMC.For extremely harsh EMC environment,we recommend using the application circuit show in Design Reference of this datasheet.
Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
LS08-15B03R3P | 5.28 | 176-418 | 250-590 | 3.3 | 1.6A | 1 | 3600VAC | SIP | 29.82*17.20*14.05 | |||||
LS08-15B05R3P | 8 | 176-418 | 250-590 | 5 | 1.6A | 1 | 3600VAC | SIP | 29.82*17.20*14.05 | |||||
LS08-15B09R3P | 8 | 176-418 | 250-590 | 9 | 0.88A | 1 | 3600VAC | SIP | 29.82*17.20*14.05 | |||||
LS08-15B12R3P | 8 | 176-418 | 250-590 | 12 | 0.67A | 1 | 3600VAC | SIP | 29.82*17.20*14.05 | |||||
LS08-15B15R3P | 8 | 176-418 | 250-590 | 15 | 0.53A | 1 | 3600VAC | SIP | 29.82*17.20*14.05 | |||||
LS08-15B24R3P | 8 | 176-418 | 250-590 | 24 | 0.33A | 1 | 3600VAC | SIP | 29.82*17.20*14.05 |
* For reference only. The detailed info please refer to the datasheet.
