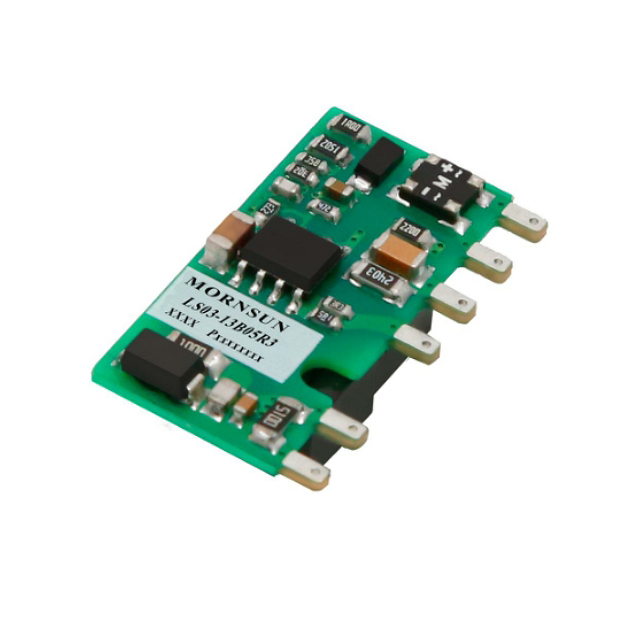

LS03-13BxxR3

Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.

Features

LS03-13BxxR3 series is one of Mornsun’s highly efficient green power AC-DC Converter series. They feature wide input range accepting either AC or DC voltage, high efficiency, low power consumption and Class II reinforced insulation. All models are particularly suitable for industrial control, electric power, instrumentation and smart home applications which have high requirement for dimension and don’t have high requirement on EMC. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

MORNSUN_AC/DC - On-board Converter Module_LS03-13BxxR3
MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample
LS03-13B03R3 1.98 85-305 70-430 3.3 600mA 1 3000VAC SIP 26.40*12.58*11.00
LS03-13B05R3 3 85-305 70-430 5 600mA 1 3000VAC SIP 26.40*12.58*11.00
LS03-13B09R3 3 85-305 70-430 9 333mA 1 3000VAC SIP 26.40*12.58*11.00
LS03-13B12R3 3 85-305 70-430 12 250mA 1 3000VAC SIP 26.40*12.58*11.00
LS03-13B15R3 3 85-305 70-430 15 200mA 1 3000VAC SIP 26.40*12.58*11.00
LS03-13B24R3 3 85-305 70-430 24 125mA 1 3000VAC SIP 26.40*12.58*11.00

* For reference only. The detailed info please refer to the datasheet.
