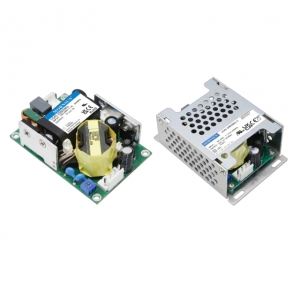

LO45-20BxxMU(-C)
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
LO45-20BxxMU series is one of Mornsun’s AC-DC miniaturize open frame power supply and suitable for all kinds of BF type (be accessible to patients) medical system equipment. It features universal AC input and at the same time accepts DC input voltage, cost-effective, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC and safety performance, which meet UL/IEC/EN/ES60601, UL/EN/IEC62368, IEC/EN60335, IEC/EN61558, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home, medical, etc.
.jpg)
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| LO45-20B03MU | 26.4 | 85-264 | 100-370 | 3.3 | 8A | 1 | 4000VAC | Open frame | 76.20*50.80*26.50 | ||||
| LO45-20B05MU | 40 | 85-264 | 100-370 | 5 | 8A | 1 | 4000VAC | Open frame | 76.20*50.80*26.50 | ||||
| LO45-20B12MU | 45 | 85-264 | 100-370 | 12 | 3.75A | 1 | 4000VAC | Open frame | 76.20*50.80*26.50 | ||||
| LO45-20B15MU | 45 | 85-264 | 100-370 | 15 | 3A | 1 | 4000VAC | Open frame | 76.20*50.80*26.50 | ||||
| LO45-20B24MU | 45 | 85-264 | 100-370 | 24 | 1.875A | 1 | 4000VAC | Open frame | 76.20*50.80*26.50 | ||||
| LO45-20B36MU | 45 | 85-264 | 100-370 | 36 | 1.25A | 1 | 4000VAC | Open frame | 76.20*50.80*26.50 | ||||
| LO45-20B48MU | 45 | 85-264 | 100-370 | 48 | 0.94A | 1 | 4000VAC | Open frame | 76.20*50.80*26.50 |
* For reference only. The detailed info please refer to the datasheet.
