LO20-10C0512-01
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features

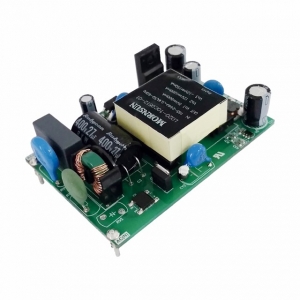

LO20-10C0512-01 is one of Mornsun’s compact size, open frame AC-DC power converters. The product features universal AC input voltage, at the same time also accepts DC input, high efficiency, high reliability and reinforced insulation. It offers excellent EMC performance, meets UL/EN/IEC62368 safety standard and is widely used in applications such as industrial controls, instrumentation, charging point.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| LO20-10C0512-01 | 18.7 | 165-264 | 230-370 | 5,±12 | 500mA,1200mA,150mA | 3 | 3000VAC | Open frame | 70.00*48.00*23.00 | - |
* For reference only. The detailed info please refer to the datasheet.
