LO10-13Bxx
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features

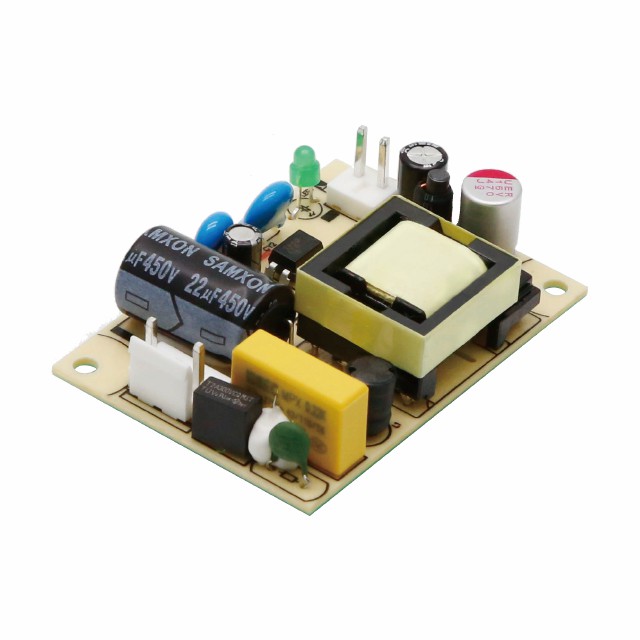

LO10-13Bxx series is one of Mornsun’s compact size power converter. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets UL/EN/IEC62368, EN/UL60335 standards. The converters are widely used in industrial, office and civil applications
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| LO10-13B05 | 10 | 85-305 | 100-430 | 5 | 2000mA | 1 | 3000VAC | Open frame | 60.00*42.00*16.30 | ||||
| LO10-13B09 | 10 | 85-305 | 100-430 | 9 | 1100mA | 1 | 3000VAC | Open frame | 60.00*42.00*16.30 | ||||
| LO10-13B12 | 10 | 85-305 | 100-430 | 12 | 900mA | 1 | 3000VAC | Open frame | 60.00*42.00*16.30 | ||||
| LO10-13B15 | 10 | 85-305 | 100-430 | 15 | 700mA | 1 | 3000VAC | Open frame | 60.00*42.00*16.30 | ||||
| LO10-13B24 | 10 | 85-305 | 100-430 | 24 | 450mA | 1 | 3000VAC | Open frame | 60.00*42.00*16.30 |
* For reference only. The detailed info please refer to the datasheet.
