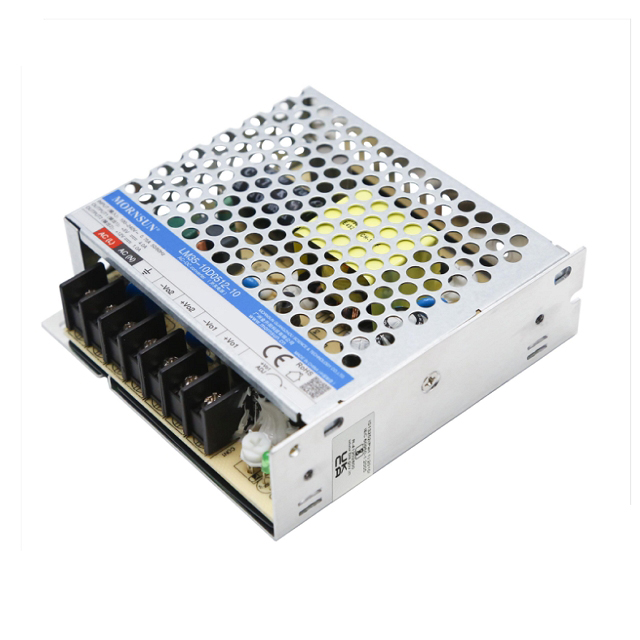

LM35-10Dxx

Features

This LM35-10Dxx series of power converter design features dual outputs, which can independently supply 2 different loads in the system. The products can be used in harsh working environments with an ambient temperature range from -30℃ to +70℃, without the need of a fan for further heat dissipation. In addition, the converters EMC immunity performance meets the requirements of IEC61000 standard and meet emission standard CISPR32/EN55032, class B without any external components, thus providing excellent EMC protection. The products also meet IEC/EN/UL62368/EN60335/GB4943 safety standards. The converters integrate a variety of protection features and offer a high-performance and high cost-effective providing the best power solution for a variety of industries such as industrial control equipment, instrumentation and smart home and building equipment application.

LM35-10Dxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Nominal Vout and Io(V/A) Operating Temperature No. of Outputs Efficiency(%) Isolation(VAC) 3D Impression Drawing (.stp) Certification Datasheet Sample Buy
LM35-10D0512-10 32 85~264VAC/120~373VDC 5V/4A,12V/1A -30℃ to +70℃ 2 81 3000 LM35-10Dxx.stp CE - LM35-10D0512-10 - sample request buy on line
LM35-10D0524-10 35 85~264VAC/120~373VDC 5V/2.2A,24V/1A -30℃ to +70℃ 2 83 3000 LM35-10Dxx.stp CE - LM35-10D0524-10 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LM35-10D0512-10
LM35-10D0524-10
