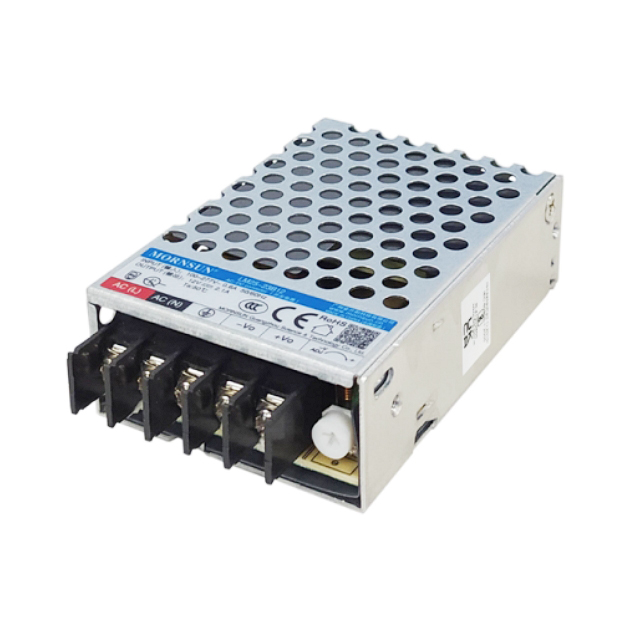

LM25-23Bxx

Features

LM25-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VAC) Vin(VDC) Nominal Vout and Io(V/A) No. of Outputs Efficiency(%) Isolation(VAC) Footprint & 3D Certification Datasheet Sample Buy
LM25-23B03 19.8 85-305 100-430 3.3V/6A 1 88 4000
LM25-23B05 25 85-305 100-430 5V/5A 1 88 4000
LM25-23B12 25.2 85-305 100-430 12V/2.1A 1 88 4000
LM25-23B15 25.5 85-305 100-430 15V/1.7A 1 88 4000
LM25-23B24 26.4 85-305 100-430 24V/1.1A 1 88 4000
LM25-23B48 27.36 85-305 100-430 48V/0.57A 1 88 4000

* For reference only. The detailed info please refer to the datasheet.
