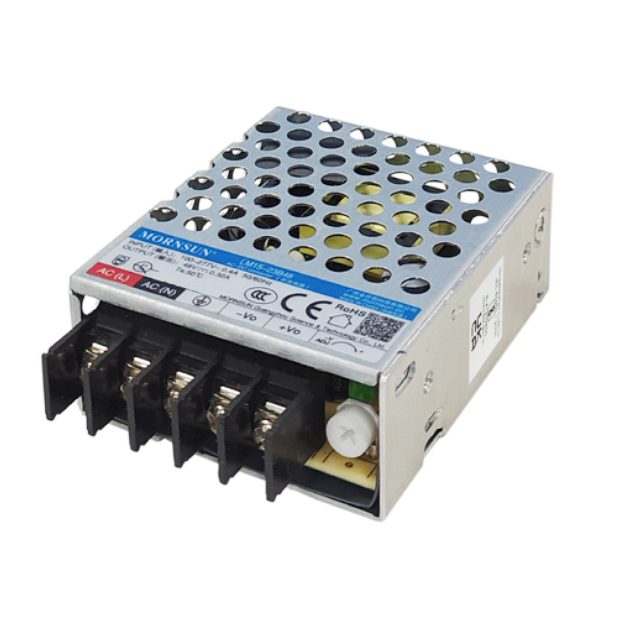

LM15-23Bxx

Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.

Features

LM15-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

MORNSUN_AC/DC - Enclosed SMPS Power Supply_LM15-23Bxx
MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout Efficiency(%) Isolation Footprint & 3D Markings Datasheet Sample
LM15-23B03 9.9 85-305 100-430 3.3 3.0A 73 4000VAC
LM15-23B05 15 85-305 100-430 5 3.0A 78 4000VAC
LM15-23B15 15 85-305 100-430 15 1.0A 82 4000VAC
LM15-23B24 15 85-305 100-430 24 0.625A 83 4000VAC
LM15-23B48 15.36 85-305 100-430 48 0.32A 83 4000VAC
LM15-23B12 15.6 85-305 100-430 12 1.3A 82 4000VAC

* For reference only. The detailed info please refer to the datasheet.
