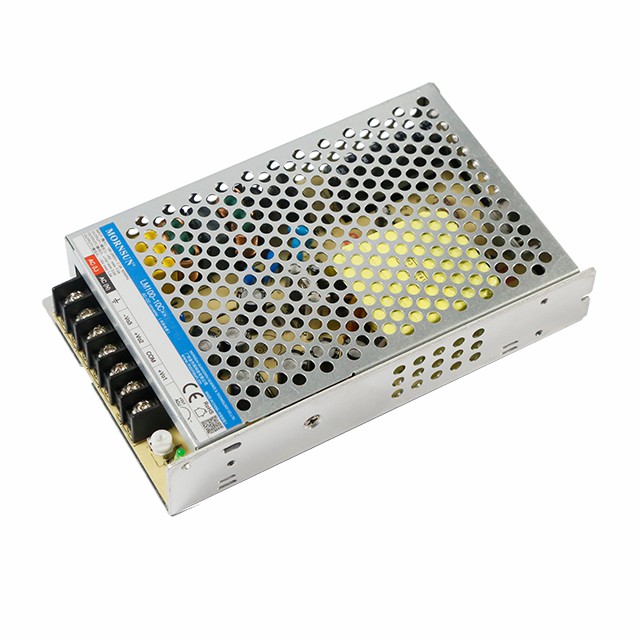

LM100-10Cxx

Features

This LM100-10Cxx series of power converter design features 3 outputs, which can independently supply 3 different loads in the system. The products can be used in harsh working environments with an ambient temperature range from -30℃ to +70℃, without the need of a fan for further heat dissipation. In addition, the converters EMC immunity performance meets the requirements of IEC61000 standard and meet emission standard CISPR32/EN55032, class B without any external components, thus providing excellent EMC protection. The products also meet IEC/EN/UL62368, EN60335, GB4943 safety standards. The converters integrate a variety of protection features and offer a high-performance to low-cost ratio providing the best power solution for a variety of industries such as industrial control equipment, instrumentation and smart home and building equipment application.

LM100-10Cxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Nominal Vout and Io(V/A) Operating Temperature No. of Outputs Efficiency(%) Isolation(VAC) 3D Impression Drawing (.stp) Certification Datasheet Sample Buy
LM100-10C051212-35 94 90~264VAC/120~373VDC 5V/8A,12V/3.5A,-12V/1A -30℃ to +70℃ 3 84 3000 LM100-10Cxx.stp CE - LM100-10C051212-35 - sample request buy on line
LM100-10C051515-30 95 90~264VAC/120~373VDC 5V/7A,15V/3A,-15V/1A -30℃ to +70℃ 3 85 3000 LM100-10Cxx.stp CE - LM100-10C051515-30 - sample request buy on line
LM100-10C052412-20 96 90~264VAC/120~373VDC 5V/6A,24V/2A,12V/1.5A -30℃ to +70℃ 3 85 3000 LM100-10Cxx.stp CE - LM100-10C052412-20 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LM100-10C051212-35
LM100-10C051515-30
LM100-10C052412-20
