LITF960-26Bxx
Features

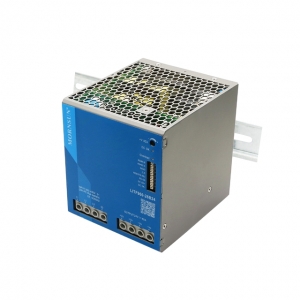

LITF960-26Bxx is Mornsun AC-DC three-phase Din-Rail switching power supply.It features cost-effective,low-power consumption,high
efficiency,high reliability and security isolation.With 150% power reserve,enough to support starting DC motor or capacitiveload and other
heavy load.These converters offer excellent EMC performance and meet IEC/UL/EN62368,IEC/EN61000,UL/EN61010,CISPR32/EN55032,
UL508 standards and they are widely used in areas of industrial control equipment,factory automation and mechanical and electrical
equipment and other industrial controlfieids.
Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | Efficiency(%) | Isolation | Footprint & 3D | Markings | Datasheet | Sample | Buy |
LITF960-26B24 | 960 | 3x320-600 | 450-800 | 24 | 40A | 95.3 | 4000VAC | |||||
LITF960-26B36 | 960 | 3x320-600 | 450-800 | 36 | 26.6A | 95.4 | 4000VAC | |||||
LITF960-26B48 | 960 | 3x320-600 | 450-800 | 48 | 20A | 94.4 | 4000VAC |
* For reference only. The detailed info please refer to the datasheet.
