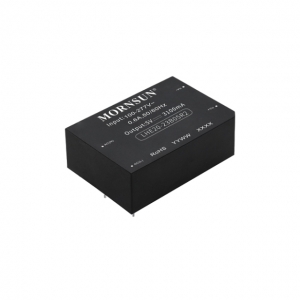

LHE20-23BxxR2
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| LHE20-23B03R2 | 11.55 | 85-305 | 100-430 | 3.3 | 3500mA | 1 | 4200VAC | DIP | 62.00* 45.00*22.50 | ||||
| LHE20-23B05R2 | 15.5 | 85-305 | 100-430 | 5 | 3100mA | 1 | 4200VAC | DIP | 62.00* 45.00*22.50 | ||||
| LHE20-23B09R2 | 18.9 | 85-305 | 100-430 | 9 | 2100mA | 1 | 4200VAC | DIP | 62.00* 45.00*22.50 | ||||
| LHE20-23B12R2 | 19.2 | 85-305 | 100-430 | 12 | 1600mA | 1 | 4200VAC | DIP | 62.00* 45.00*22.50 | ||||
| LHE20-23B15R2 | 19.5 | 85-305 | 100-430 | 15 | 1300mA | 1 | 4200VAC | DIP | 62.00* 45.00*22.50 | ||||
| LHE20-23B48R2 | 19.68 | 85-305 | 100-430 | 48 | 410mA | 1 | 4200VAC | DIP | 62.00* 45.00*22.50 | ||||
| LHE20-23B24R2 | 20.4 | 85-305 | 100-430 | 24 | 850mA | 1 | 4200VAC | DIP | 62.00* 45.00*22.50 |
* For reference only. The detailed info please refer to the datasheet.
