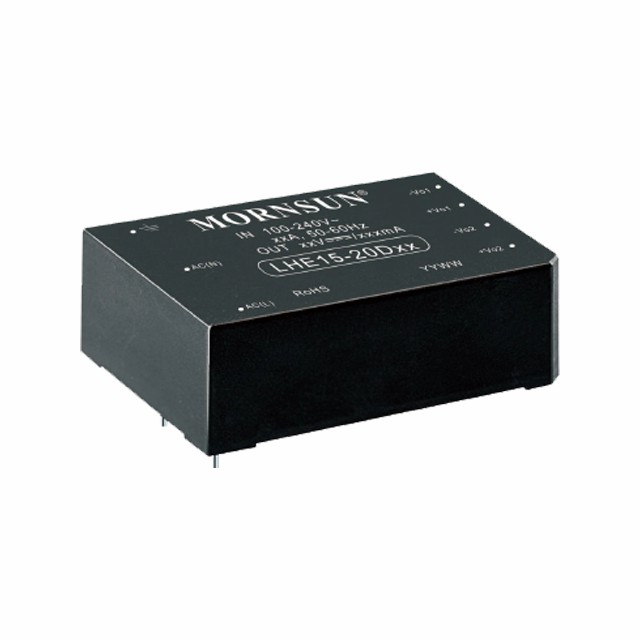

LHE15-20Dxx
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
LHE15-20Dxx series is one of Mornsun’s compact size multi-outputs power converters. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability and reinforce insulation. It offers good EMC performance and is widely used in industrial, office and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| LHE15-20D0505-08 | 15 | 85-264 | 100-370 | 5,5 | 2000mA,800mA | 2 | 4000VAC | DIP | 62.00*45.00*22.50 | - | |||
| LHE15-20D0512-04 | 15 | 85-264 | 100-370 | 5,12 | 2000mA,400mA | 2 | 4000VAC | DIP | 62.00*45.00*22.50 | - | |||
| LHE15-20D0524-02 | 15 | 85-264 | 100-370 | 5,15 | 2000mA,200mA | 2 | 4000VAC | DIP | 62.00*45.00*22.50 | - | |||
| LHE15-20D0524-04 | 15 | 85-264 | 100-370 | 5,24 | 1000mA,400mA | 2 | 4000VAC | DIP | 62.00*45.00*22.50 | - |
* For reference only. The detailed info please refer to the datasheet.
