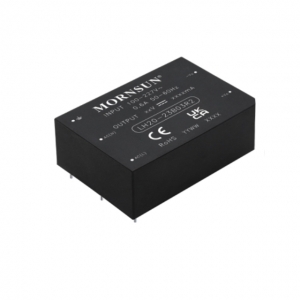

LH20-23BxxR2

Features

LH20-23BxxR2 series AC-DC converters are highly efficient,environmental-friendly 20W power modules.It features universal AC input and at
the same time accepts DC input voltage,low power consumption,high efficiency,high reliability,reinforced isolation.It offers good EMC
performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets UL/EN/IEC62368,IEC62477 standards.The converters are widely
used in industrial,power and office applications.For extremely harsh EMC environment,we recommend using the application circuit show in
 Design Reference of this datasheet.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
LH20-23B03R2 11.55 85-305 100-430 3.3 3500mA 1 4200VAC DIP 62.00* 45.00*22.50
LH20-23B05R2 15.5 85-305 100-430 5 3100mA 1 4200VAC DIP 62.00* 45.00*22.50
LH20-23B09R2 18.9 85-305 100-430 9 2100mA 1 4200VAC DIP 62.00* 45.00*22.50
LH20-23B12R2 19.2 85-305 100-430 12 1600mA 1 4200VAC DIP 62.00* 45.00*22.50
LH20-23B15R2 19.5 85-305 100-430 15 1300mA 1 4200VAC DIP 62.00* 45.00*22.50
LH20-23B48R2 19.68 85-305 100-430 48 410mA 1 4200VAC DIP 62.00* 45.00*22.50
LH20-23B24R2 20.4 85-305 100-430 24 850mA 1 4200VAC DIP 62.00* 45.00*22.50

* For reference only. The detailed info please refer to the datasheet.
