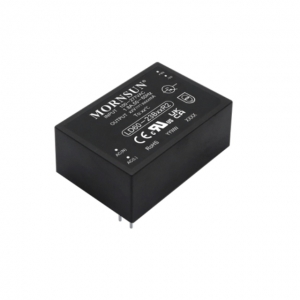

LD60-23BxxR2
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
LD60-23BxxR2 series AC-DC converters is one of Mornsun’s new generation compact size power converters.It feature sultra-wide AC input and at the same time accepts DC input voltage,low power consumption,low ripple & noise,high efficiency,high reliability,reinforced isolation.It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/UL/EN62368,
IEC/EN60335/62477,EN61558 standards.The converters are widely used in industrial,power,home appliances,instrumentation,communication and civil applications.For extremely harsh EMC environment,we recommend using the application circuit show in Design Reference of this datasheet.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| LD60-23B05R2 | 50 | 85-305 | 100-430 | 5 | 10A | 1 | 4200VAC | DIP | 70.00*48.00*27.00 | ||||
| LD60-23B12R2 | 60 | 85-305 | 100-430 | 12 | 5A | 1 | 4200VAC | DIP | 70.00*48.00*27.00 | ||||
| LD60-23B15R2 | 60 | 85-305 | 100-430 | 15 | 4A | 1 | 4200VAC | DIP | 70.00*48.00*27.00 | ||||
| LD60-23B24R2 | 60 | 85-305 | 100-430 | 24 | 2.5A | 1 | 4200VAC | DIP | 70.00*48.00*27.00 | ||||
| LD60-23B48R2 | 60 | 85-305 | 100-430 | 48 | 1.25A | 1 | 4200VAC | DIP | 70.00*48.00*27.00 | ||||
| LD60-23B55R2 | 60.5 | 85-305 | 100-430 | 55 | 1.09A | 1 | 4200VAC | DIP | 70.00*48.00*27.00 | - |
* For reference only. The detailed info please refer to the datasheet.
