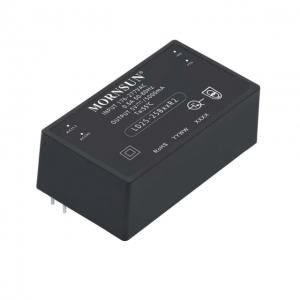

LD25-25BxxR2
Features
LD25-25BxxR2 series AC-DC converters is one of Mornsun’s new generation compact size power converters..It features ultra-wide AC input and at the same
time accepts DC input voltage,low power consumption,high efficiency,high reliability,
reinforced isolation.It offers good EMC performance compliant to IEC/EN61000-4
and CISPR32/EN55032 and meets EN62368 standards.The converters are widely used in power,instrumentation applications.For extremely harsh EMC environment,we recommend using the application circuit show in Design Reference of this datasheet.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| LD25-25B03R2 | 16.5 | 176-418 | 248-591 | 3 | 5000mA | 1 | 4200VAC | DIP | 69.50*39.00*24.00 | |||||
| LD25-25B05R2 | 25 | 176-418 | 248-591 | 5 | 5000mA | 1 | 4200VAC | DIP | 69.50*39.00*24.00 | |||||
| LD25-25B15R2 | 25.05 | 176-418 | 248-591 | 15 | 1670mA | 1 | 4200VAC | DIP | 69.50*39.00*24.00 | |||||
| LD25-25B09R2 | 25.2 | 176-418 | 248-591 | 9 | 2800mA | 1 | 4200VAC | DIP | 69.50*39.00*24.00 | |||||
| LD25-25B12R2 | 25.2 | 176-418 | 248-591 | 12 | 2100mA | 1 | 4200VAC | DIP | 69.50*39.00*24.00 | |||||
| LD25-25B24R2 | 26.4 | 176-418 | 248-591 | 24 | 1100mA | 1 | 4200VAC | DIP | 69.50*39.00*24.00 | |||||
| LD25-25B48R2 | 26.4 | 176-418 | 248-591 | 48 | 550mA | 1 | 4200VAC | DIP | 69.50*39.00*24.00 |
* For reference only. The detailed info please refer to the datasheet.
