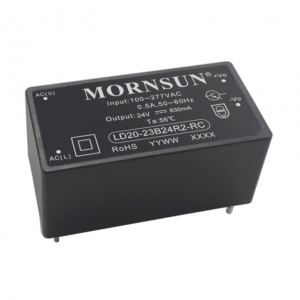

LD20-23BxxR2-RC

Features

LD20-23BxxR2-RCseriesisoneofMornsun’scompactAC-DCpowerconverters.Itfeaturesultra-wideACinputvoltagerangesand compatiblewithDCinputvoltage,lowpowerconsumption,lowripple&noise,highefficiency,highreliability,reinforcedinsulation.Itoffers goodEMCperformancecomplianttoIEC/EN61000-4andCISPR32/EN55032andmeetssafetystandardIEC/EN/UL62368,IEC/EN60335, EN62477.Theconvertersarewidelyusedinindustrial,electricautomation,homeappliancesandEVchargingapplications.Forextremely harshEMCenvironment,werecommendtousetheapplicationcircuitshowninDesignReferenceofthisdatasheet.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
LD20-23B03R2-RC 13.2 85-305 100-430 3.3 4000mA 1 4200VAC DIP 52.40*27.20*24.00
LD20-23B05R2-RC 20 85-305 100-430 5 4000mA 1 4200VAC DIP 52.40*27.20*24.00
LD20-23B09R2-RC 20 85-305 100-430 9 2222mA 1 4200VAC DIP 52.40*27.20*24.00
LD20-23B12R2-RC 20 85-305 100-430 12 1670mA 1 4200VAC DIP 52.40*27.20*24.00
LD20-23B15R2-RC 20 85-305 100-430 15 1333mA 1 4200VAC DIP 52.40*27.20*24.00
LD20-23B24R2-RC 20 85-305 100-430 24 830mA 1 4200VAC DIP 52.40*27.20*24.00
LD20-23B48R2-RC 20 85-305 100-430 48 410mA 1 4200VAC DIP 52.40*27.20*24.00

* For reference only. The detailed info please refer to the datasheet.
