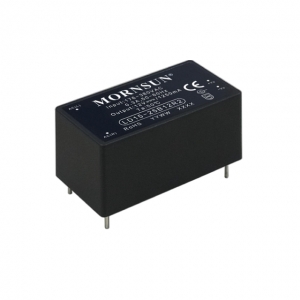

LD15-25BxxR2
Features
LD15-25BxxR2 series AC-DC converters is one of Mornsun’s new generation compact size power converter. They feature wide input range accepting either AC or DC voltage, high reliability, low power consumption and reinforced isolation. The product corresponds to the use of three-phase alternating current with two phases to achieve ground fault protection, while meeting the power supply requirements of the system board in the power system, such as the application of charging point. All models are particularly suitable for industrial control, electric power, instrumentation and smart home applications which have high requirement for dimension and don’t have high requirement on EMC. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| LD15-25B05R2 | 15 | 176-418 | 248-591 | 5 | 3000mA | 1 | 4000VAC | DIP | 52.40*27.20*24.00 | ||||
| LD15-25B09R2 | 15 | 176-418 | 248-591 | 9 | 1670mA | 1 | 4000VAC | DIP | 52.40*27.20*24.00 | ||||
| LD15-25B12R2 | 15 | 176-418 | 248-591 | 12 | 1250mA | 1 | 4000VAC | DIP | 52.40*27.20*24.00 | ||||
| LD15-25B15R2 | 15 | 176-418 | 248-591 | 15 | 1000mA | 1 | 4000VAC | DIP | 52.40*27.20*24.00 | ||||
| LD15-25B24R2 | 15 | 176-418 | 248-591 | 24 | 625mA | 1 | 4000VAC | DIP | 52.40*27.20*24.00 |
* For reference only. The detailed info please refer to the datasheet.
