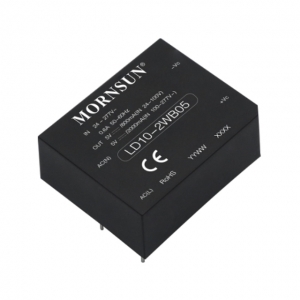

LD10-2WBxx
Features
LD10-2WBxxseriesAC-DCconvertersisoneofMornsun’sultra-low,ultra-wideinputpowerconverter.Itfeaturesultra-wideACinputandat thesametimeacceptsDCinputvoltage,lowpowerconsumption,lowripple&noise,highefficiency,highreliability,reinforcedisolation.It offersgoodEMCperformancecomplianttoIEC/EN61000-4andCISPR32/EN55032andmeetsIEC/EN/UL62368/EN60335/EN61558standards. Theconvertersarecampatiblewithavarietyofcommoninputvoltageapplicationenvironmentssuchas24VDC,48VDC,24VAC,110VAC, 220VAC,230VAC,277VAC,andtheyarewidelyusedinlowvoltageswitch,industrial,power,instrumentation,communicationandcivil applications.ForextremelyharshEMCenvironment,werecommendusingtheapplicationcircuitshowinDesignReferenceofthis datasheet.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| LD10-2WB12 | 9.96 | 21.6-305 | 18-430 | 12 | 830mA | 1 | 4000VAC | DIP | 55.00*45.00*21.00 | ||||
| LD10-2WB05 | 10 | 21.6-305 | 18-430 | 5 | 2000mA | 1 | 4000VAC | DIP | 55.00*45.00*21.00 | ||||
| LD10-2WB15 | 10.05 | 21.6-305 | 18-430 | 15 | 670mA | 1 | 4000VAC | DIP | 55.00*45.00*21.00 | ||||
| LD10-2WB24 | 10.08 | 21.6-305 | 18-430 | 24 | 420mA | 1 | 4000VAC | DIP | 55.00*45.00*21.00 |
* For reference only. The detailed info please refer to the datasheet.
